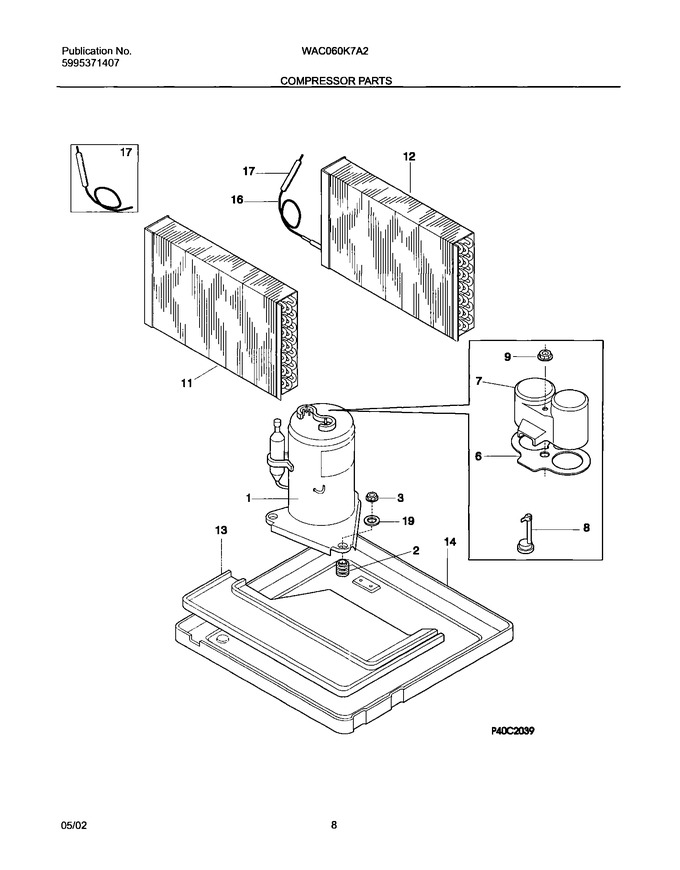

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303691 | Screw |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 6 | 5303291330 | Gasket |
|
- | |||||
| 7 | 5304416126 | Cover,elec Terminal ,compressor |
|
- | |||||
| 9 | 5303294292 | Nut-cover |
|
- | |||||
| 13 | 5303302849 | Tray-evaporator |
|
- | |||||
| 14 | 5304413780 | No.base-compr/std Assy Comp 1403 |
|
- | |||||
| 17 | 5303290357 | Strainer |
|
- | |||||
| 19 | 5303002664 | Washer |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 5304419799 | Compressor,goldstar |
|
- | |||||
| F11 | 309604211 | Evaporator |
|
- | |||||
| F12 | 309645401 | Condenser |
|
- | |||||
| F16 | 5308017120 | Capillary Tube |
|
- | |||||
| F17 | 5300265301 | Drain, Filter |
|
$ 284.30 | |||||
| F8 | 5303286408 | Overload |
|
- |
