01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling
09 - Compressor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

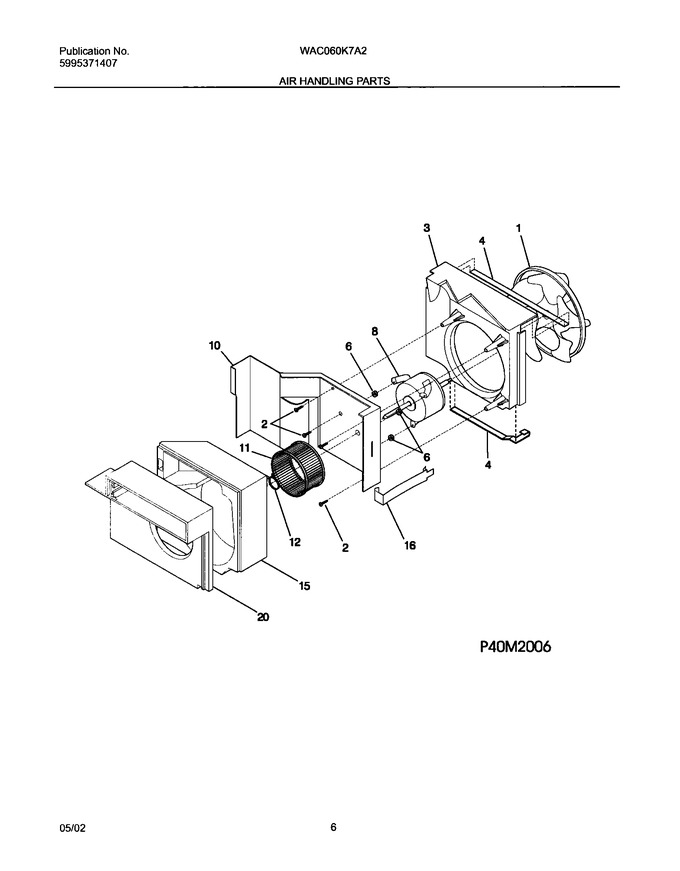

| 1 | 5303303691 | Screw |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 309624201 | Housing-fan |
|
- | |||||
| 4 | 5303303759 | Seal |
|
- | |||||
| 4 | 5303270043 | Seal (cut To Size) |
|
- | |||||
| 6 | 5304422716 | Nut-,flanged 4mm |
|
- | |||||
| 10 | 309602404 | Bulkhead |
|
- | |||||
| 12 | 327161302 | Clamp,blower Wheel Mt ,compression |
|
- | |||||
| 15 | 5304407653 | Housing-blower |
|
- | |||||
| 16 | 309100201 | Clip |
|
- | |||||
| 20 | 5304407654 | Plate-blower Housing,scroll Plate |
|
- | |||||
| F1 | 309624506 | Fan Blade,with Clamp |
|
- | |||||
| F11 | 309631702 | Blower Wheel |
|
- | |||||
| F8 | 309645001 | Motor |
|
- | |||||
| NI | 3015312 | Screw |
|
- |
