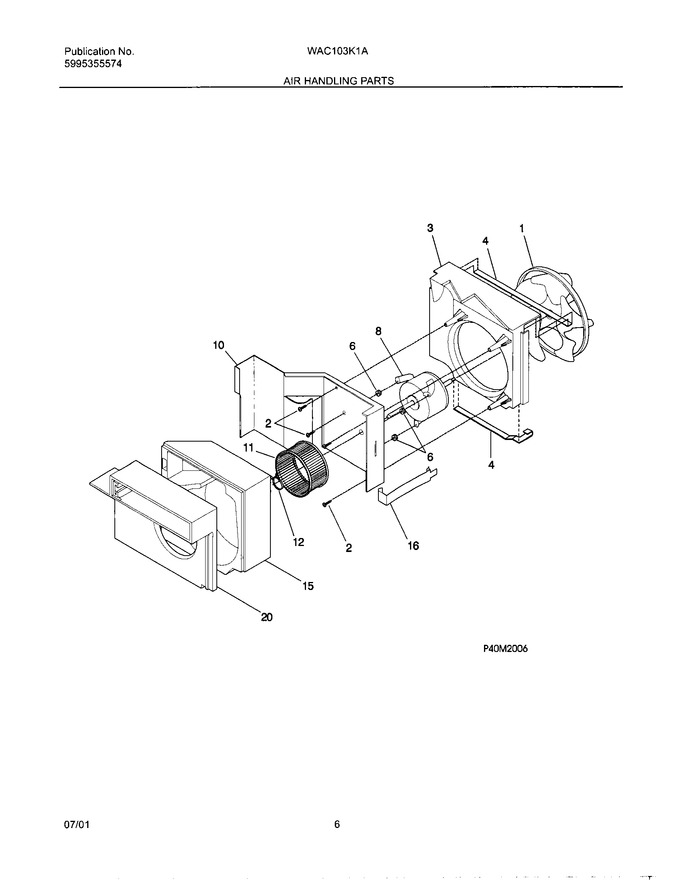

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309645702 | Fan Blade- Aasy |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309643901 | Housing-fan |
|
- | |||||
| 6 | 5300105402 | Grommet-motor, (3) |
|
- | |||||
| 10 | 309643701 | Bulkhead |
|
- | |||||
| 12 | 309112101 | Clamp-blower |
|
- | |||||
| 15 | 309642901 | Housing-blower,extended |
|
- | |||||
| 16 | 309100201 | Clip |
|
- | |||||
| 20 | 309643002 | Plate-scroll |
|
- | |||||
| F11 | 309643301 | Blower Wheel,5``hub |
|
$ 52.03 | |||||
| F8 | 309642404 | Motor-fan,4plgehi |
|
- | |||||
| NI | 5303012110 | Clamp-blower |
|
$ 8.14 |
