SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper

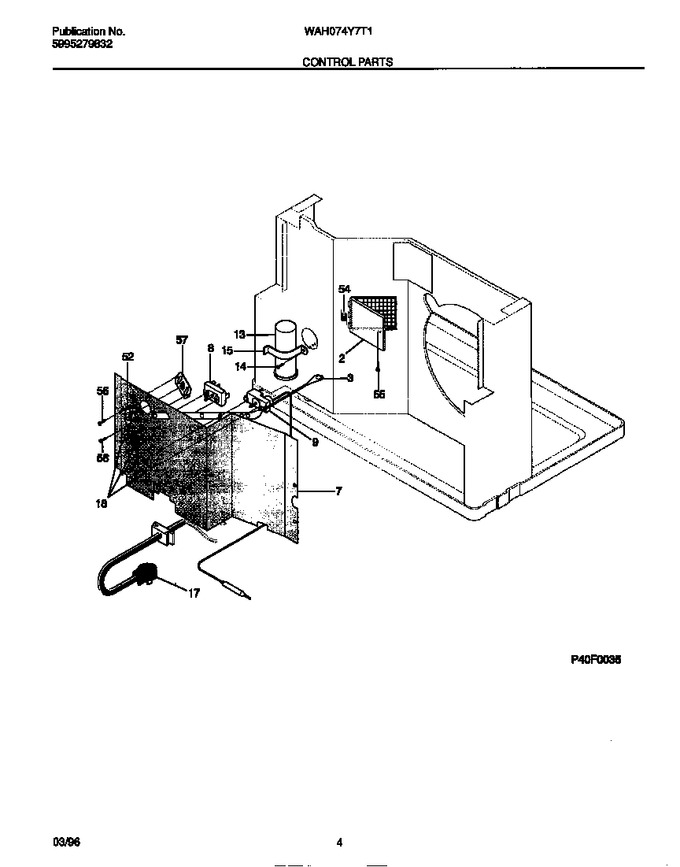

03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303012455		Door Vent		Appelez-nous	-
3	5303301584		Cable-vent Door		Appelez-nous	-
7	3017506		Panel-control		Appelez-nous	-
8	3204196		Switch-selector		Appelez-nous	-
9	5303285388		Control -temperature		Appelez-nous	-
13	5308017135		Capacitor 35-10/370		Appelez-nous	-
14	5303015427		Screw, Truss Head, 8-18ab X 0.47, Square Drive		Appelez-nous	-
15	08006443		Strap-capacitor		Appelez-nous	-
17	5303301027		Cord-electric Power		Appelez-nous	-
18	5303007754		Screw, .138-32 X .188		Appelez-nous	-
52	08002946		Spring-detent		Appelez-nous	-
54	08003049		Spring-vent Door		Appelez-nous	-
55	5303285199		Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head		Appelez-nous	-
56	08011095		Screw-detent		Appelez-nous	-
57	5303002096		Base-detent		Appelez-nous	-
