01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:

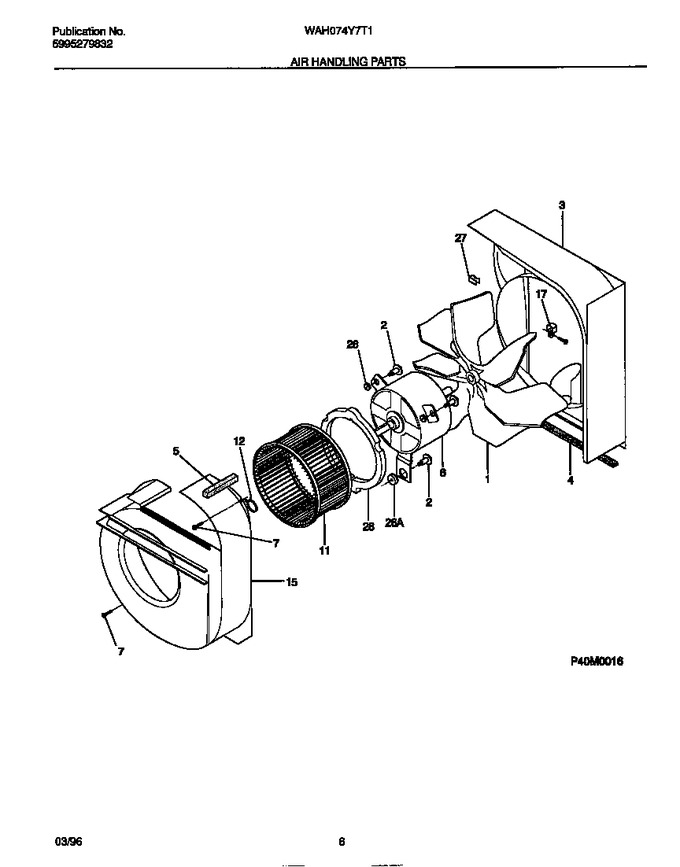

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308006458 | Fan Blade |
|
- | |||||
| 2 | 5308009142 | Screw-motor |
|
- | |||||
| 3 | 5308006455 | Shroud |
|
- | |||||
| 4 | 5308006456 | Seal-shroud |
|
- | |||||
| 5 | 08013055 | Seal-scroll |
|
- | |||||
| 7 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 8 | 5303302477 | Motor-fan |
|
- | |||||
| 11 | 5308006464 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 08006465 | Scroll |
|
- | |||||
| 17 | 5303014132 | Clamp-fan Blade |
|
- | |||||
| 26 | 08013770 | Grommet-motor, (2), Top |
|
- | |||||
| 26 | 5303001825 | Grommet-motor, (1), Bottom |
|
- | |||||
| 27 | 5303002607 | Clip-shroud, Condenser |
|
- | |||||
| 28 | 5308006462 | Seal-motor |
|
- |
