01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts

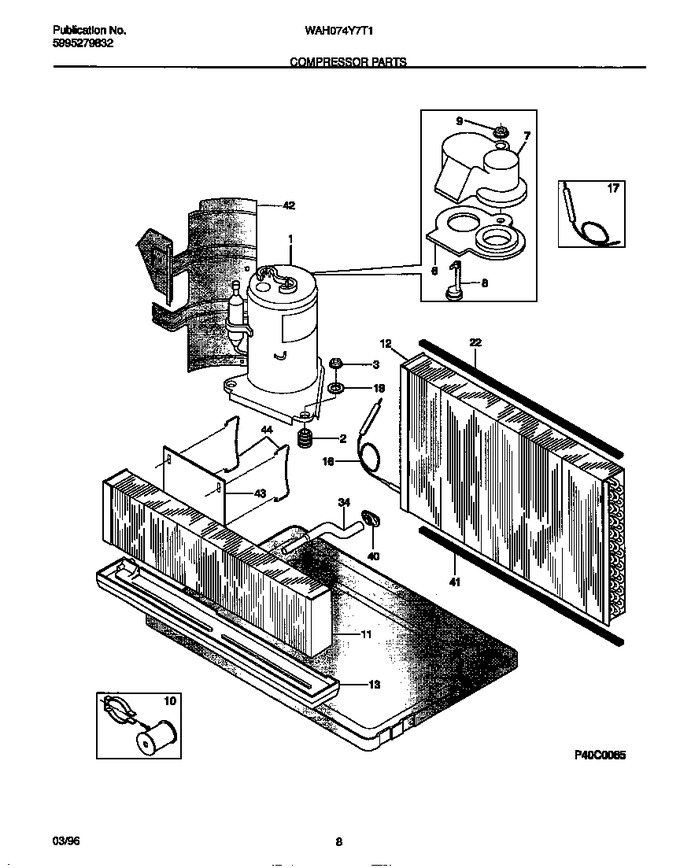

05 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309616903 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut, Compressor, (3) |
|
- | |||||
| 6 | 3201668 | Gasket-cover |
|
- | |||||
| 7 | 3201669 | Cover-terminal |
|
- | |||||
| 8 | 5303317553 | Overload Protector |
|
- | |||||
| 9 | 3201670 | Nut-cover |
|
- | |||||
| 10 | 5303318551 | Start Assist Kit, Compressor |
|
- | |||||
| 11 | 5303285953 | Evaporator |
|
- | |||||
| 12 | 5303285387 | Condenser |
|
- | |||||
| 13 | 5308006452 | Tray-evaporator |
|
- | |||||
| 16 | 3203179 | Capillary Tube |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 22 | 5308007697 | Seal-condenser Top, Top |
|
- | |||||
| 34 | 3017505 | Hose-drain |
|
- | |||||
| 40 | 3205437 | Grommet, Drain |
|
- | |||||
| 41 | 08007704 | Seal-condenser Base, 41 |
|
- | |||||
| 42 | 5303285201 | Baffle-condensate |
|
- | |||||
| 43 | 5308006449 | Baffle-evaporator |
|
- | |||||
| 44 | 08006448 | Retainer, Baffle Evap |
|
- |
