SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts

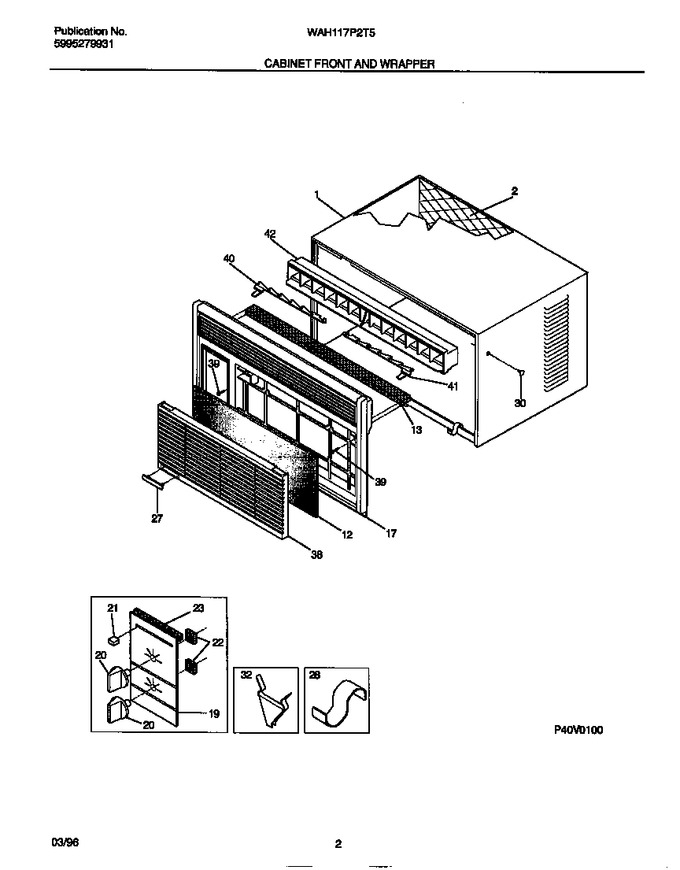

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303596		Cabinet		Appelez-nous	-
2	5303303597		Grille, Rear		Appelez-nous	-
12	5303001809		Filter		Appelez-nous	-
13	5300301157		Seal-mullion		Appelez-nous	-
17	5303210983		Front-complete		Appelez-nous	-
19	309617901		Dial Plate		Appelez-nous	-
20	5300331902		Knob Control		Appelez-nous	-
21	5303002189		Knob-slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	5303001984		Seal, Plate		Appelez-nous	-
27	309100803		Nameplate		Appelez-nous	-
28	5308010914		Clip-front To Base		Appelez-nous	-
30	08016091		Plug		Appelez-nous	-
32	5303001844		Clip-link, (2)		Appelez-nous	-
38	5303210352		Panel-front		Appelez-nous	-
39	134178901		Screw, Truss Head, 8-18 X 0.625, Front, (2), Square Driv   (Replaces: 5303293767)				$ 14.89
40	5303293787		Link, Louver, Left Side		Appelez-nous	-
41	5303293786		Link, Louver, Right Side		Appelez-nous	-
42	5303002458		Louver With Link		Appelez-nous	-
