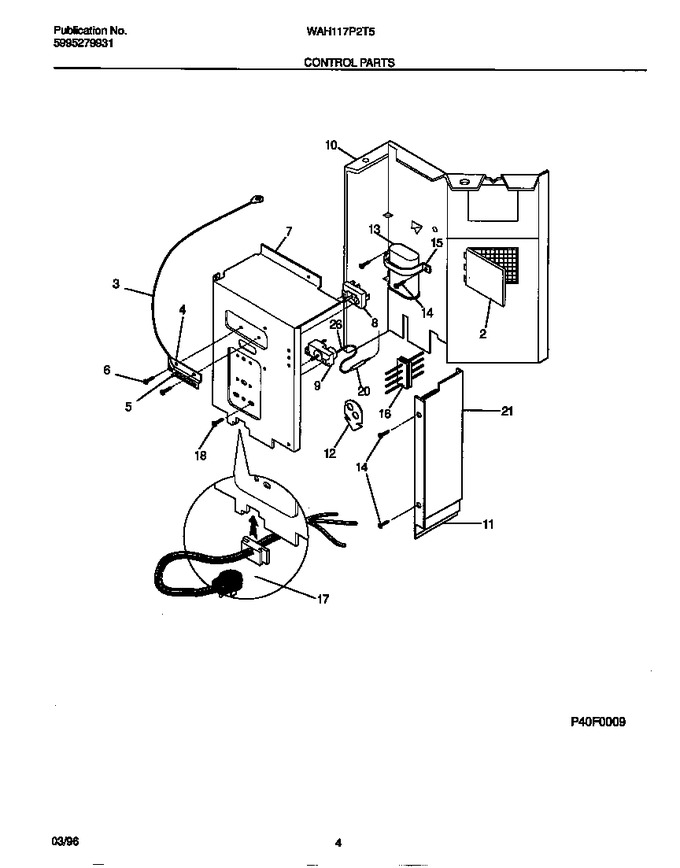

03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door-ventilator		Appelez-nous	-
3	5303015298		Cable-vent Control		Appelez-nous	-
4	5303202999		Retainer-actuator Arm		Appelez-nous	-
5	3202941		Actuator Arm-vent Control		Appelez-nous	-
6	3015312		Screw, 8-18 X 0.47		Appelez-nous	-
7	5303293521		Panel-mounting, Controls		Appelez-nous	-
8	5308006811		Switch-selector				$ 33.65
9	5303301708		Control-temperature		Appelez-nous	-
10	5303295238		Bulkhead		Appelez-nous	-
11	5303210243		Divider-vertical		Appelez-nous	-
12	3203075		Clip-control Bulb		Appelez-nous	-
13	5303316907		Capacitor, 370 V, 5 + 30 Mfd		Appelez-nous	-
14	5303015427		Screw, Truss Head, 8-18ab X 0.47, Square Drive		Appelez-nous	-
15	5303303077		Strap - Capacitor		Appelez-nous	-
16	5303203112		Wiring Harness		Appelez-nous	-
17	5303301030		Cord-electric Power		Appelez-nous	-
18	5303007754		Screw, .138-32 X .188		Appelez-nous	-
20	5303002600		Sleeve, Control		Appelez-nous	-
21	3202963		Insulation-divider		Appelez-nous	-
26	5308007834		Sleeve-control Bulb		Appelez-nous	-
