01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

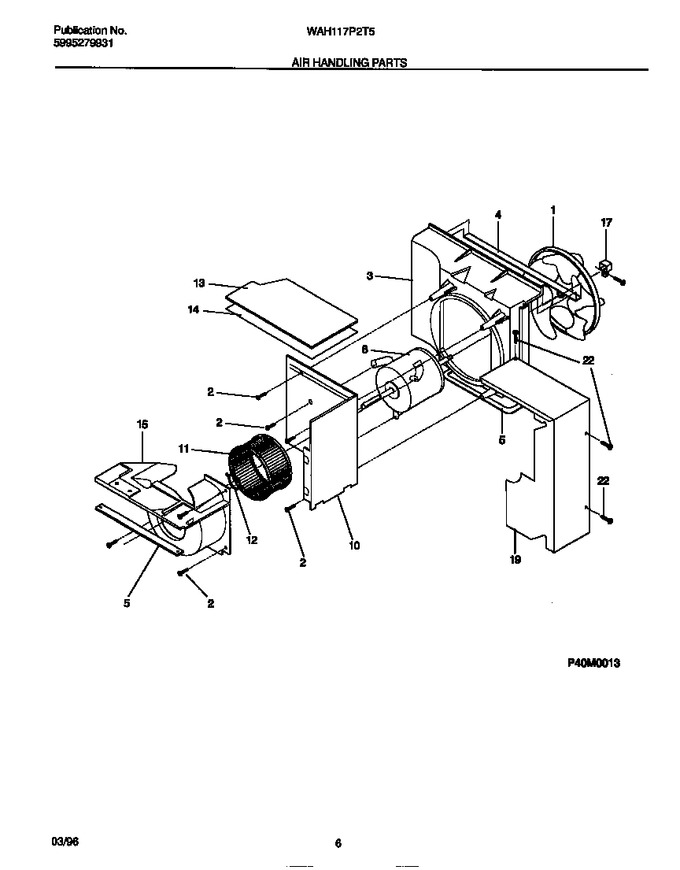

| 1 | 5303207279 | Fan Blade, With Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 5303207278 | Housing-fan |
|
- | |||||
| 4 | 5303207364 | Seal-housing, Top |
|
- | |||||
| 5 | 3202951 | Seal |
|
- | |||||
| 8 | 5303302660 | Motor-fan |
|
- | |||||
| 10 | 5303295238 | Bulkhead |
|
- | |||||
| 11 | 5303210236 | Blower Wheel |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 13 | 3202957 | Cover-top |
|
- | |||||
| 14 | 3202958 | Insulation-top Cover |
|
- | |||||
| 15 | 5303300760 | Housing-blower |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 19 | 5303270122 | Baffle |
|
- | |||||
| 22 | 3015312 | Screw, 8-18 X 0.47 |
|
- |
