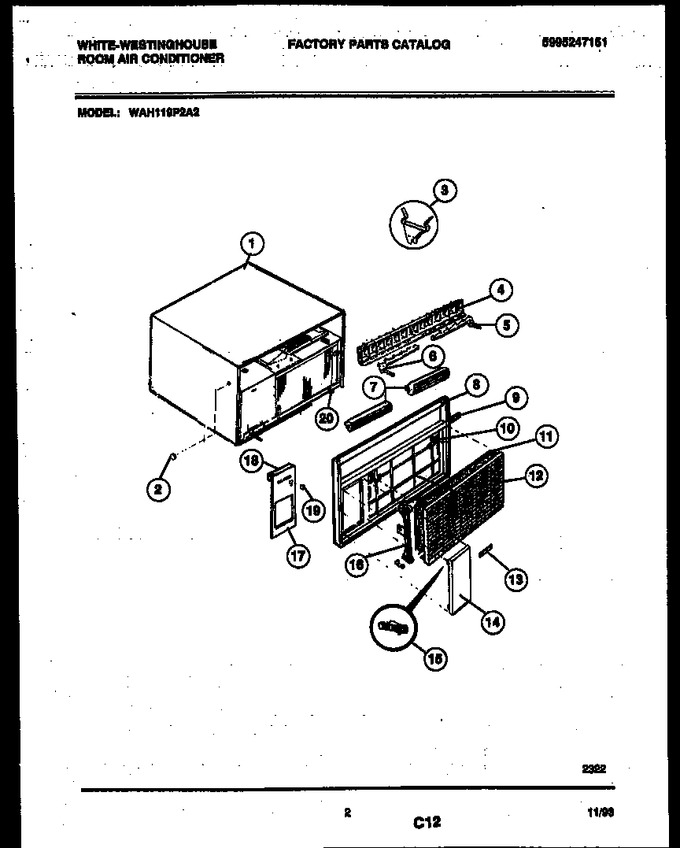

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303302607 | Wrapper |
|
- | |||||
| 2 | 08016091 | Plug Button |
|
- | |||||
| 3 | 5303001844 | Clip-louver |
|
- | |||||
| 4 | 5303002458 | Louver |
|
- | |||||
| 5 | 5303293786 | Link-rh |
|
- | |||||
| 6 | 5303293787 | Link-lh |
|
- | |||||
| 7 | 5308017244 | Louver |
|
- | |||||
| 8 | 5303302722 | Front Complete |
|
- | |||||
| 9 | 5300301157 | Seal-mullion |
|
- | |||||
| 10 | 5308008175 | Screw-front |
|
- | |||||
| 11 | 5300462201 | Filter |
|
- | |||||
| 12 | 5300454703 | Panel |
|
- | |||||
| 13 | 5300138101 | Nameplate |
|
- | |||||
| 14 | 5303201645 | Door |
|
- | |||||
| 15 | 5303017980 | Hinge |
|
- | |||||
| 16 | 5300346201 | Track Filter |
|
- | |||||
| 17 | 5303284620 | Dial Plate |
|
- | |||||
| 18 | 08016089 | Seal |
|
- | |||||
| 19 | 5303002189 | Knob-slide |
|
- | |||||
| 20 | 5308010914 | Clip-front To Base |
|
- | |||||
| 1A | 5303301025 | Grille-rear (non-illustrated) |
|
- | |||||
| 1B | 5303299933 | Nameplate (non-illustrated) |
|
- |
