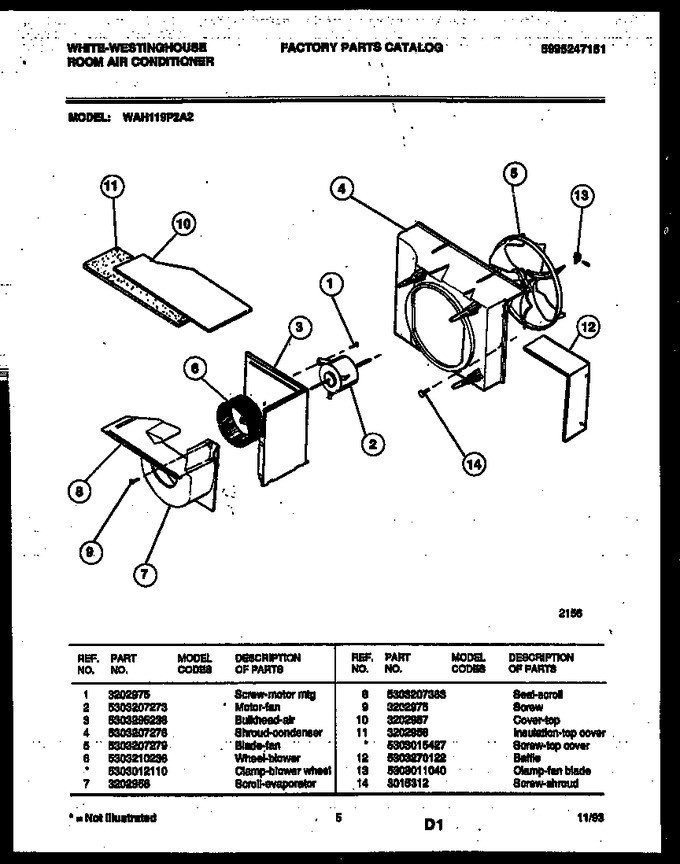

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202975 | Screw - Motor Mtg |
|
- | |||||
| 2 | 5303207273 | Motor-fan |
|
- | |||||
| 3 | 5303295238 | Bulkhead-air |
|
- | |||||
| 4 | 5303207278 | Shroud - Condenser |
|
- | |||||
| 5 | 5303207279 | Blade - Fan |
|
- | |||||
| 6 | 5303210236 | Wheel-blower |
|
- | |||||
| 7 | 3202956 | Scroll-evaporator |
|
- | |||||
| 8 | 5303207363 | Seal-scroll |
|
- | |||||
| 9 | 3202975 | Screw |
|
- | |||||
| 10 | 3202957 | Cover-top |
|
- | |||||
| 11 | 3202958 | Insulation-top Cover |
|
- | |||||
| 12 | 5303270122 | Baffle |
|
- | |||||
| 13 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 14 | 3015312 | Screw-shroud |
|
- | |||||
| 11A | 5303015427 | Screw-top Cover (non-illustrated) |
|
- | |||||
| 6A | 5303012110 | Clamp - Blower Wheel |
|
