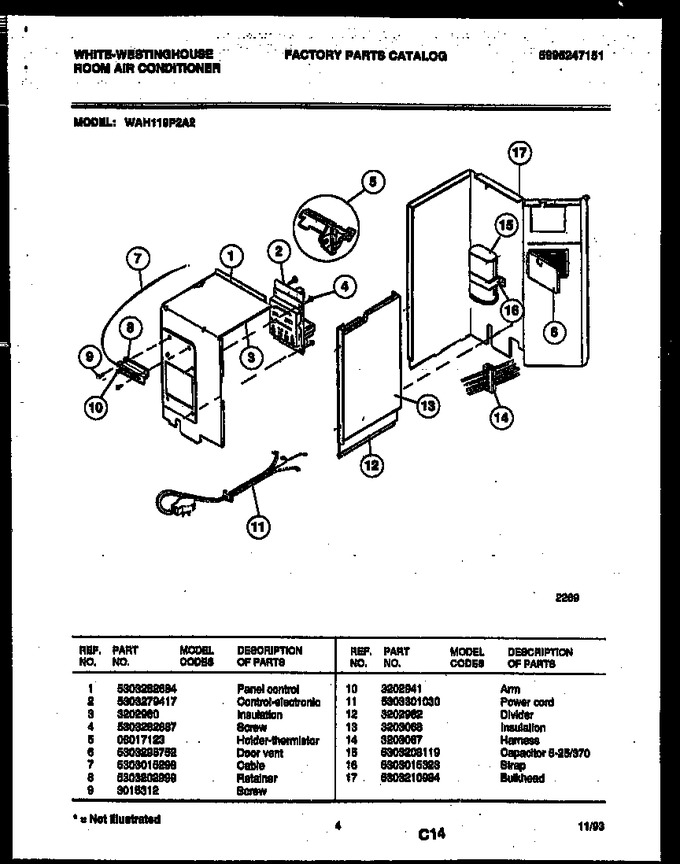

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303282684 | Panel Control |
|
- | |||||
| 2 | 5303279417 | Control Electronic |
|
- | |||||
| 3 | 3202960 | Insulation |
|
- | |||||
| 4 | 5303282687 | Screw |
|
- | |||||
| 5 | 08017123 | Holder - Thermistor |
|
- | |||||
| 6 | 5303295752 | Door-vent |
|
- | |||||
| 7 | 5303015298 | Cable |
|
- | |||||
| 8 | 5303202999 | Retainer |
|
- | |||||
| 9 | 3015312 | Screw |
|
- | |||||
| 10 | 3202941 | Arm |
|
- | |||||
| 11 | 5303301030 | Power Cord |
|
- | |||||
| 12 | 3202962 | Divider |
|
- | |||||
| 13 | 3203068 | Insulation |
|
- | |||||
| 14 | 3203067 | Harness |
|
- | |||||
| 15 | 5303208119 | Capacitor 5-25/370 |
|
- | |||||
| 16 | 5303015323 | Strap |
|
- | |||||
| 17 | 5303210984 | Bulkhead |
|
- |
