SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - System Parts
05 - Air Handling Parts
New Model Search:

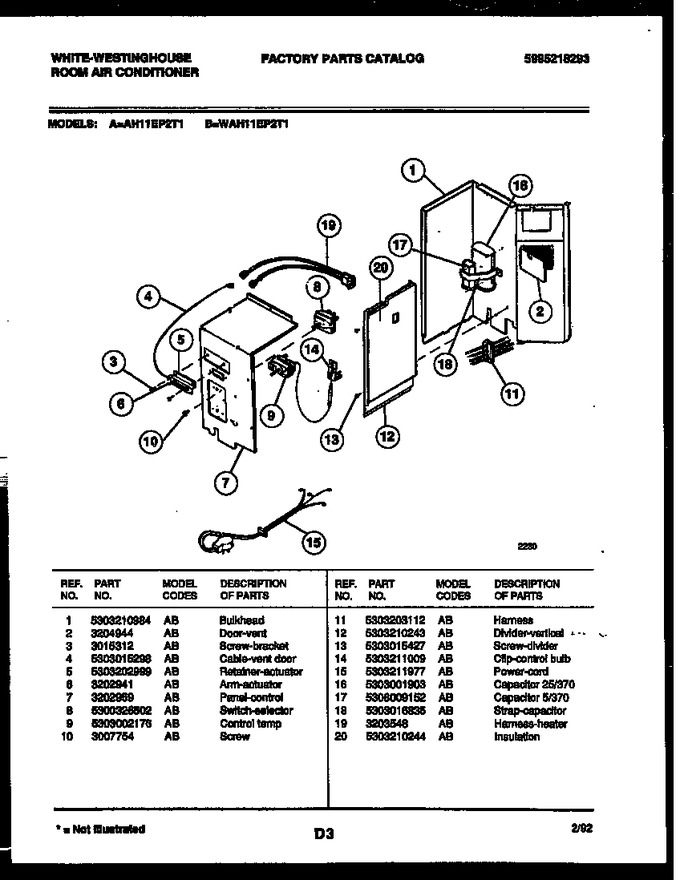

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead |
|
- | |||||
| 2 | 3204944 | Door-vent |
|
- | |||||
| 3 | 3015312 | Screw-bracket |
|
- | |||||
| 4 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 5 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 6 | 3202941 | Arm-actuator |
|
- | |||||
| 7 | 3202959 | Panel-control |
|
- | |||||
| 8 | 5300326502 | Switch-selector |
|
- | |||||
| 9 | 5303002176 | Control Temp |
|
- | |||||
| 10 | 3007754 | Screw |
|
- | |||||
| 11 | 5303203112 | Harness |
|
- | |||||
| 12 | 5303210243 | Divider-vertical |
|
- | |||||
| 13 | 5303015427 | Screw - Divider |
|
- | |||||
| 14 | 5303211009 | Clip-control Bulb |
|
- | |||||
| 15 | 5303211977 | Power Cord |
|
- | |||||
| 16 | 5303001903 | Capacitor 25/370 |
|
- | |||||
| 17 | 5308009152 | Capacitor 5/370 |
|
- | |||||
| 18 | 5303016835 | Strap-capacitor |
|
- | |||||
| 19 | 3203548 | Harness & Heater |
|
- | |||||
| 20 | 5303210244 | Insulation |
|
- |
