02 - Cabinet Parts
03 - Electrical Parts
04 - System Parts
05 - Air Handling Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

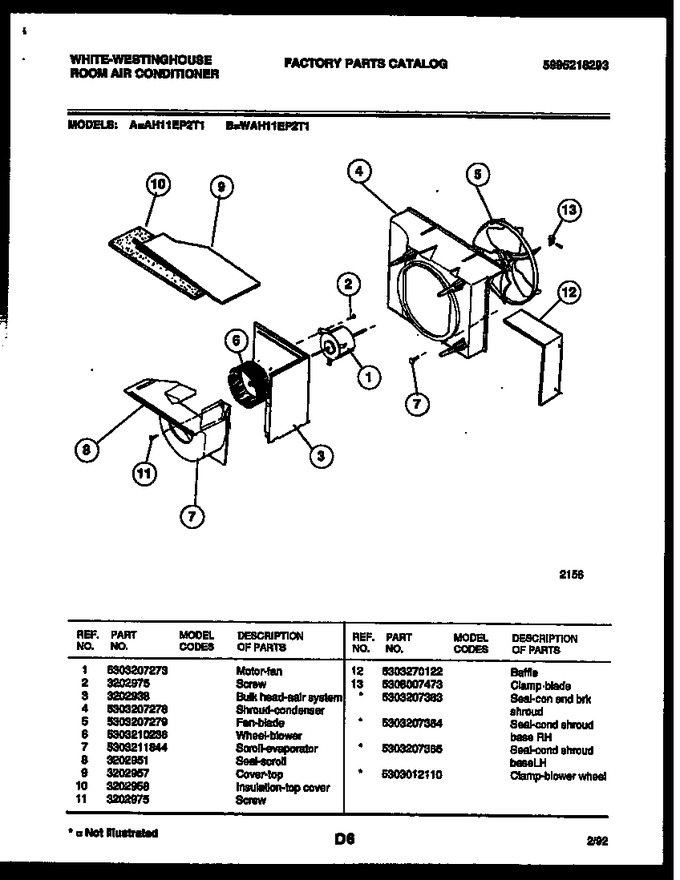

| 1 | 5303207273 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 3202938 | Bulk Head-aair System |
|
- | |||||
| 4 | 5303207278 | Shroud - Condenser |
|
- | |||||
| 5 | 5303207279 | Fan - Blade |
|
- | |||||
| 6 | 5303210236 | Wheel-blower |
|
- | |||||
| 7 | 5303211844 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 9 | 3202957 | Cover-top |
|
- | |||||
| 10 | 3202958 | Insulation-top Cover |
|
- | |||||
| 11 | 3202975 | Screw |
|
- | |||||
| 12 | 5303270122 | Baffle |
|
- | |||||
| 13 | 5308007473 | Clamp-blade |
|
- | |||||
| *60817 | 5303207363 | Seal-con End Brk Shroud |
|
- | |||||
| *60818 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *60818 | 5303207364 | Seal-cond Shroud Base (rh) |
|
- |
