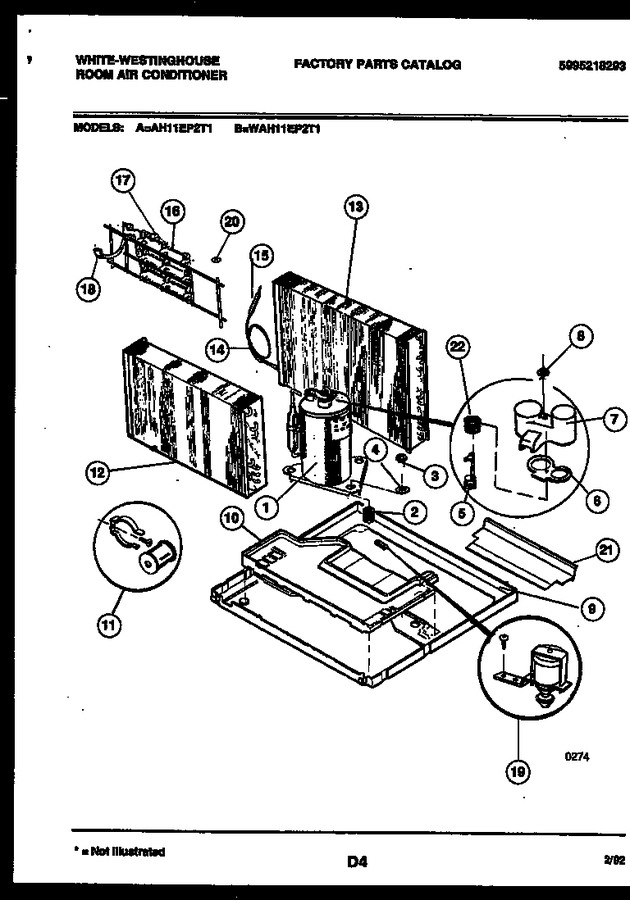

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303283082 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 5 | 5303271613 | Overload |
|
- | |||||
| 6 | 3201668 | Gasket |
|
- | |||||
| 7 | 3201669 | Cover |
|
- | |||||
| 8 | 3201670 | Nut-cover |
|
- | |||||
| 9 | 5303284643 | Base |
|
- | |||||
| 10 | 5303210203 | Tray-evap |
|
- | |||||
| 11 | 5303201723 | Start Kit |
|
- | |||||
| 12 | 5303207276 | Evaporator |
|
- | |||||
| 13 | 5303207277 | Condenser |
|
- | |||||
| 14 | 5308017253 | Tube Capillary (cut To 35``) |
|
- | |||||
| 15 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 16 | 5303210241 | Heater |
|
- | |||||
| 17 | 5303018574 | Thermostat |
|
- | |||||
| 18 | 3017076 | Harness |
|
- | |||||
| 19 | 3017804 | Drain-valve |
|
- | |||||
| 20 | 3018695 | Nut |
|
- | |||||
| 21 | 5303210249 | Heat-shield |
|
- | |||||
| *60818 | 5303207365 | Seal-cond Shroud Base (lh) |
|
- |
