View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

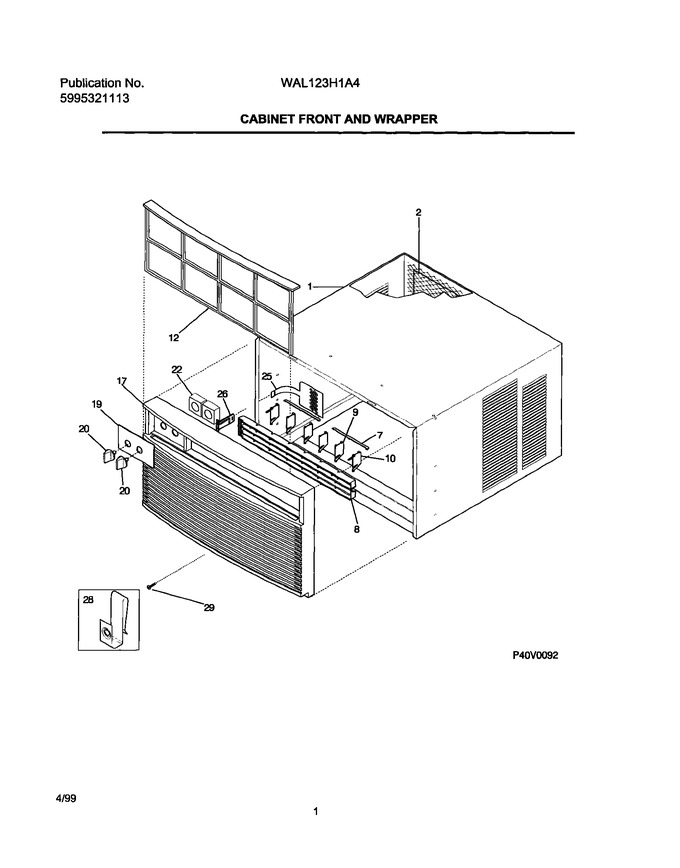

02 - Cabinet Front And Wrapper
04 - Controls
06 - Air Handling Parts
08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309609207 | Cabinet |
|
- | |||||
| 2 | 5303303597 | Grille, Rear |
|
- | |||||
| 7 | 309304101 | Link,louver ,(2) |
|
- | |||||
| 8 | 309609601 | Louver |
|
- | |||||
| 9 | 309607801 | Louver-vertical, (4) |
|
- | |||||
| 10 | 309607802 | Louver-vertical W/handle, (2) |
|
- | |||||
| 12 | 309607501 | Filter |
|
- | |||||
| 17 | 309607601 | Front Complete |
|
- | |||||
| 19 | 309614614 | Dial Plate |
|
- | |||||
| 20 | 309306906 | Knob-control |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 25 | 309328602 | Door-vent,fresh Air |
|
- | |||||
| 26 | 309328702 | Handle-vent Door 2005 (beige) |
|
- | |||||
| 28 | 309100401 | Clip,cabinet Front |
|
- | |||||
| 26A | 309330201 | Detent-vent |
|
$ 26.30 |
