01 - Cover
02 - Cabinet Front And Wrapper
04 - Controls
06 - Air Handling Parts

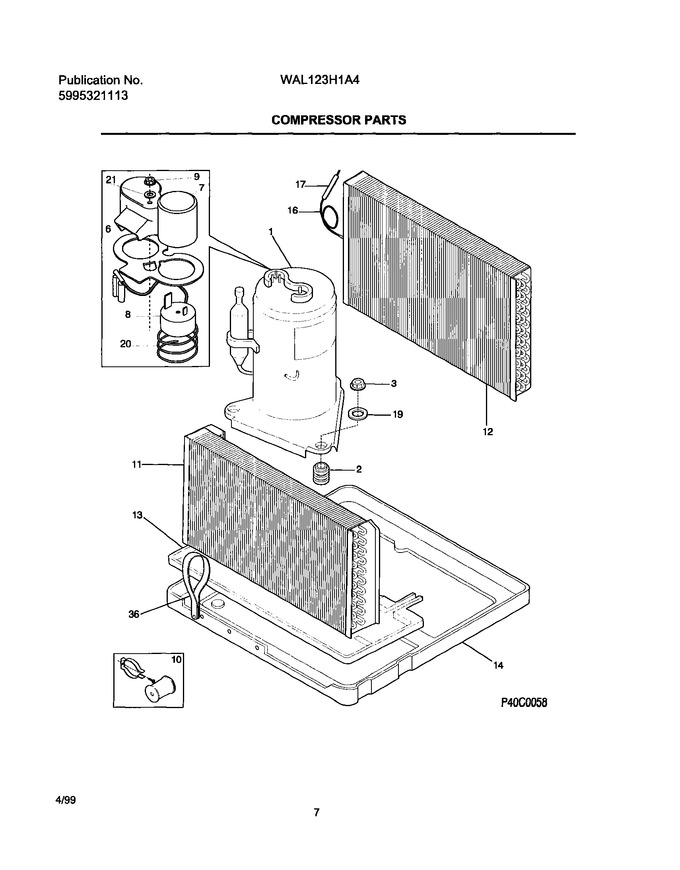

08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut, Compressor, (3) |
|
- | |||||
| 6 | 5303272298 | Gasket-cover |
|
- | |||||
| 7 | 3206230 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 13 | 309606001 | Tray-evaporator |
|
- | |||||
| 14 | 5304407867 | Base/compressor-stud Assy |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 36 | 5303303558 | Strap-chassis Pull |
|
- | |||||
| F1 | 5304407864 | Compressor |
|
- | |||||
| F11 | 309606105 | Evaporator |
|
- | |||||
| F12 | 5304407866 | Condenser |
|
- | |||||
| F16 | 5308017120 | Capillary Tube |
|
- | |||||
| F8 | 5303016697 | Overload Protector |
|
- |
