View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
04 - Controls
06 - Air Handling Parts
08 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

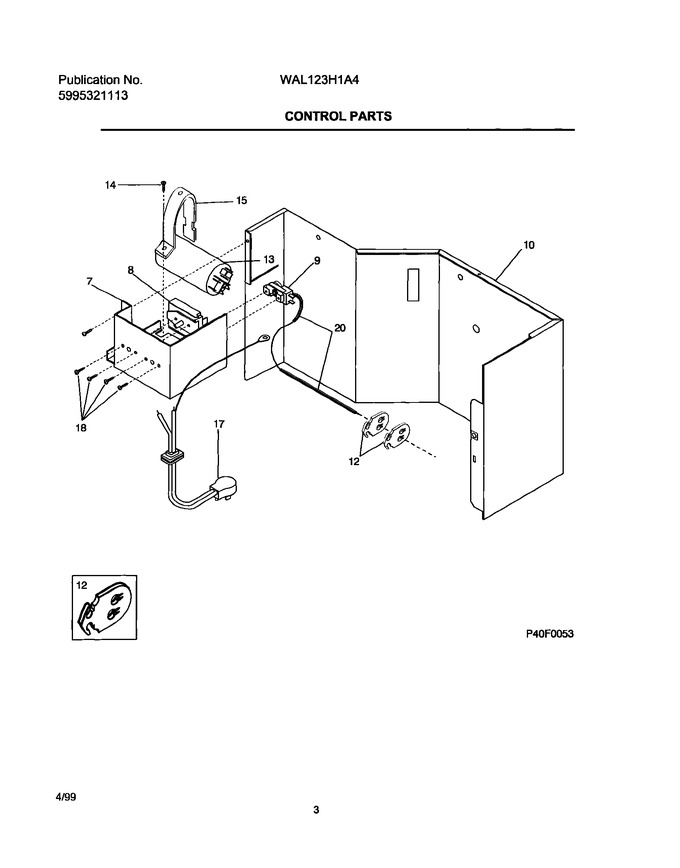

| 7 | 309605603 | Control Box |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 12 | 5303002169 | Clip-control Bulb |
|
- | |||||
| 14 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- | |||||
| F13 | 309335304 | Capac-40+10/370 Kuk Kwang |
|
- | |||||
| F17 | 5303316618 | Cord-electric Power, 115 |
|
- | |||||
| F8 | 5303316598 | Switch-selector |
|
- | |||||
| F9 | 5303316597 | Control-temperature |
|
- |
