01 - Cover

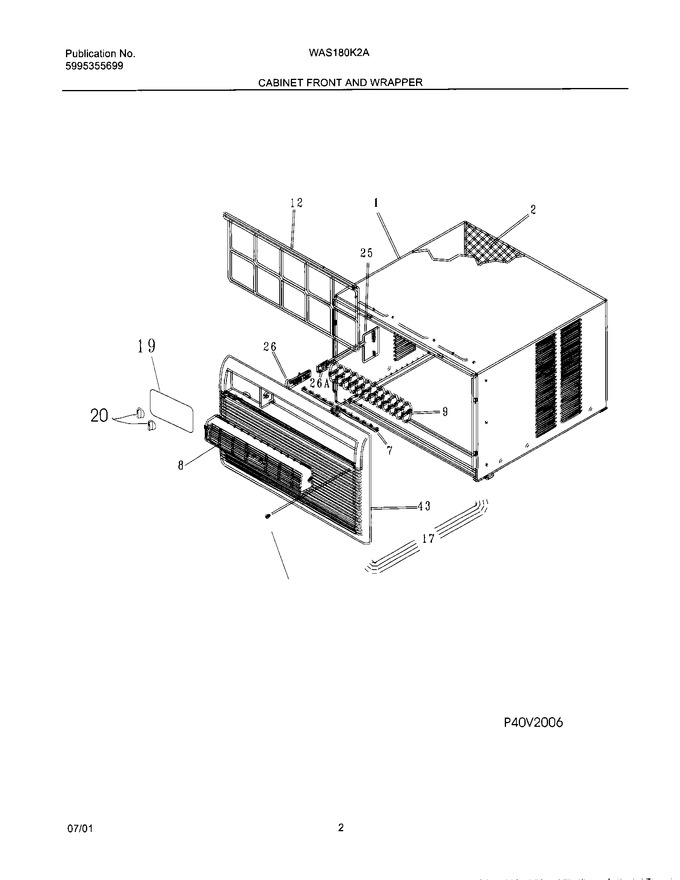

03 - Cabinet Front & Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309632704 | Cabinet,sleeve ,top Louvers |
|
- | |||||
| 2 | 309632804 | Grille,rear ,with Rail |
|
- | |||||
| 7 | 309631104 | Link,vertical Louver |
|
- | |||||
| 8 | 309630804 | Louver,horizontal |
|
- | |||||
| 9 | 309631004 | Louver |
|
- | |||||
| 12 | 309631404 | Filter-air,molded Plastic |
|
- | |||||
| 17 | 309633205 | Front-cabinet,complete Assy |
|
- | |||||
| 19 | 309633508 | Dial-plate |
|
- | |||||
| 20 | 309307013 | Knob-control |
|
- | |||||
| 25 | 309321401 | Door-vent,actuator |
|
- | |||||
| 26 | 309330206 | Detent Assy-vent,with Adhesive |
|
- | |||||
| 43 | 309633719 | Kit-front Assy |
|
- | |||||
| 26A | 309330202 | Detent-vent |
|
- | |||||
| NI | 309633305 | Louver Assy,horizontal |
|
- |
