01 - Cover
03 - Cabinet Front & Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
SELECT A DIAGRAM
New Model Search:

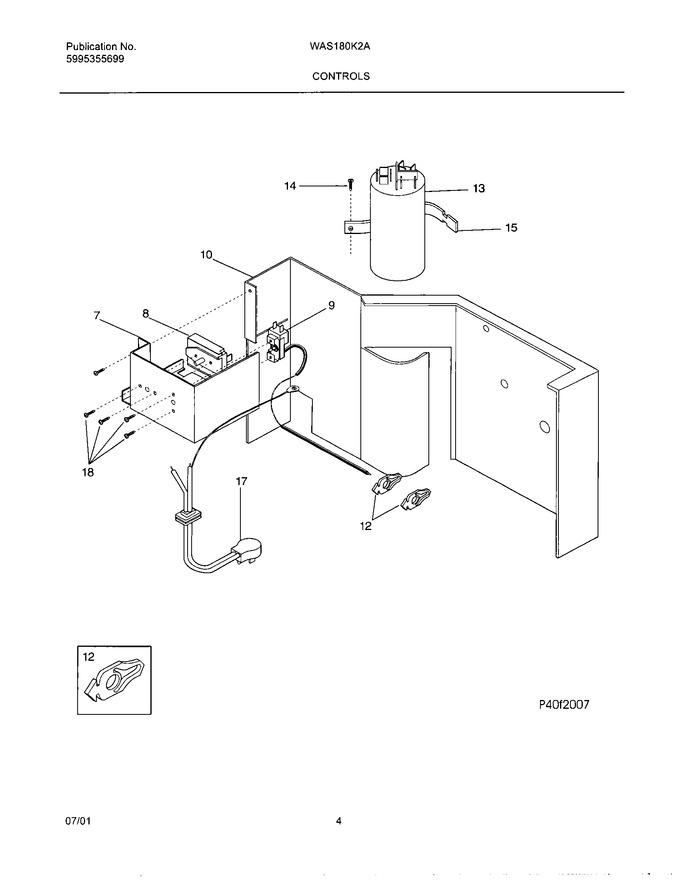

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309630401 | Control Box |
|
- | |||||
| 10 | 309623601 | Bulkhead,control System |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| F13 | 5303317228 | Capacitor,370 V ,30+6 |
|
- | |||||
| F17 | 309343112 | Cord-service,type C 16awg |
|
- | |||||
| F8 | 5303323284 | Switch-selector |
|
- | |||||
| F9 | 5304408295 | Control-temperature,20 Amp |
|
- | |||||
| NI | 309331801 | Clip-control Bulb,(2) |
|
- | |||||
| NI | 5304408751 | Wiring Harness |
|
- |
