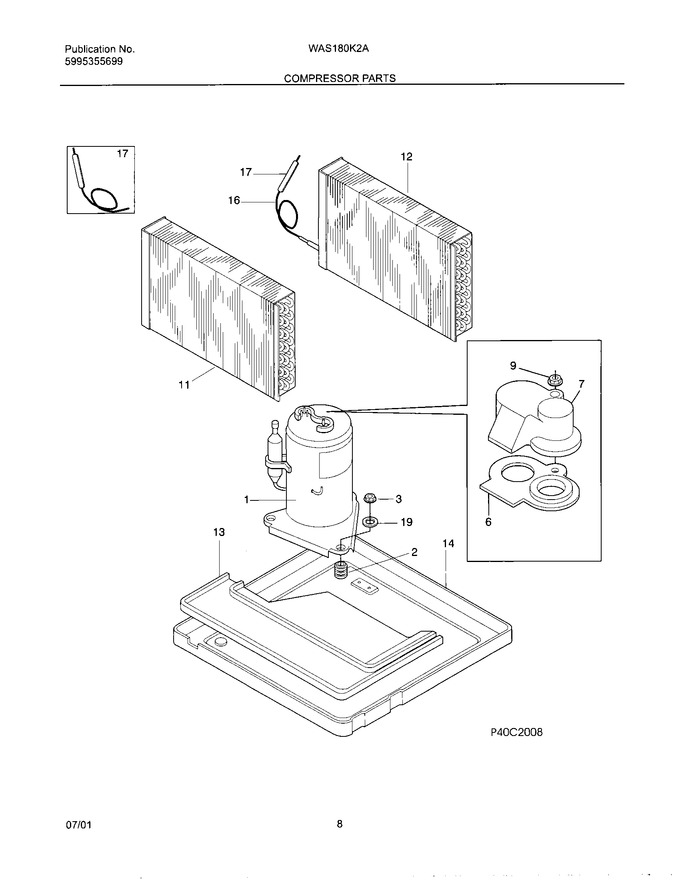

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front & Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303286606 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303002068 | Gasket,terminal Cover |
|
- | |||||
| 7 | 5303002067 | Cover,compr Terminal |
|
- | |||||
| 13 | 309623501 | Tray-evaporator |
|
- | |||||
| 14 | 309632906 | Base Stud Assy |
|
- | |||||
| 16 | 5308017120 | Capillary Tube,45 Inch Long ,cut To Length |
|
- | |||||
| 17 | 5304416409 | Tube-process |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| F1 | 5304403268 | Compressor |
|
- | |||||
| F11 | 309634101 | Evaporator |
|
- | |||||
| F12 | 5303306719 | Condenser |
|
$ 574.61 | |||||
| NI | 5303002069 | Wire-bale,terminal Cover |
|
- | |||||
| NI | 309112501 | Washer,metallic |
|
- |
