SELECT A DIAGRAM

01 - Cover

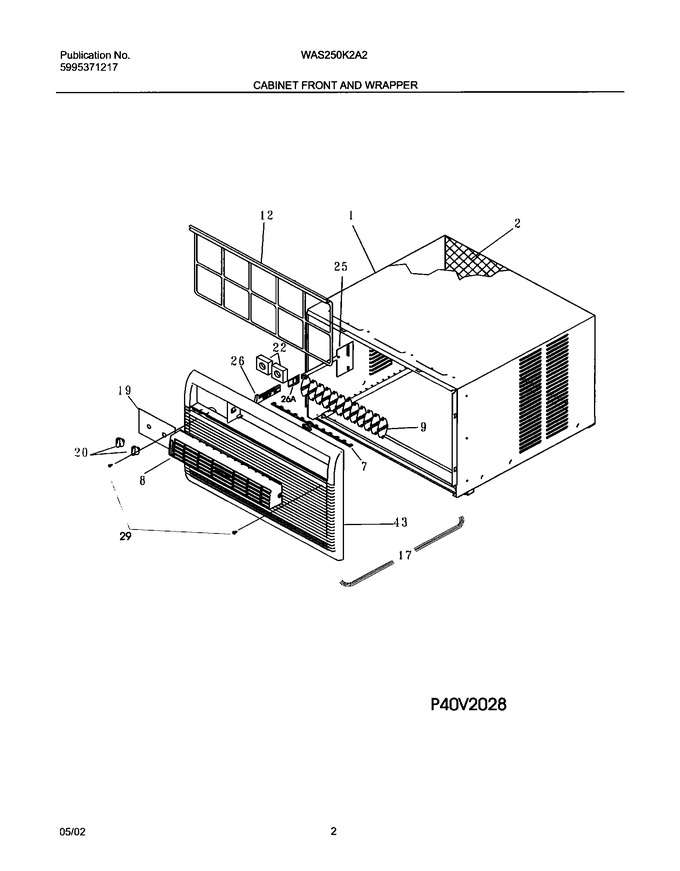

03 - Cabinet Front And Wrapper


05 - Controls


07 - Air Handling Parts


09 - Compressor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309632704		No.slv-seal Assy Domestic		Appelez-nous	-
2	5304415693		Nameplate,rear Grille		Appelez-nous	-
2	309632804		No.grill&rr Rail Asm-hdtc		Appelez-nous	-
7	309631104		Link-handle,vertical Louver		Appelez-nous	-
8	309630804		Louver,horizontal		Appelez-nous	-
8	309633305		Louver Assy,horizontal		Appelez-nous	-
9	309631004		Louver,vertical		Appelez-nous	-
12	309631404		No.filter-molded		Appelez-nous	-
17	309633205		No.front Assy-fac 1403		Appelez-nous	-
19	309633508		Dial-plate		Appelez-nous	-
20	309307013		Control Knob		Appelez-nous	-
22	5303001775		Spacer		Appelez-nous	-
25	309321401		Door,vent ,with Actuator		Appelez-nous	-
26	309330404		No.handle-vent Barclna (1403)		Appelez-nous	-
29	3015312		Screw		Appelez-nous	-
43	309630904		No.frame-frnt Hdtc Brcln		Appelez-nous	-
26A	309330202		Detent-vent		Appelez-nous	-
NI	5303212504		Seal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
