01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts
09 - Compressor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

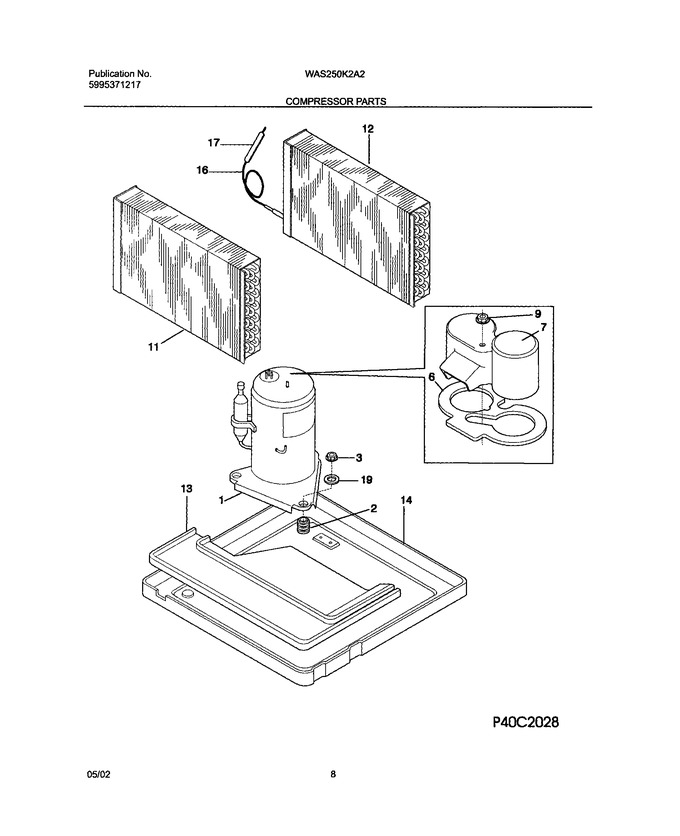

| 1 | 309646901 | Compressor,w/internal Ovld |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 6 | 309364305 | Gasket,terminal Cover |
|
- | |||||
| 7 | 309364301 | Cover,compr Terminal |
|
- | |||||
| 9 | 309364302 | Nut,terminal Cover |
|
- | |||||
| 13 | 309623501 | Tray,evap Drip |
|
- | |||||
| 14 | 309632912 | Base,compressor Mtg ,with Studs |
|
- | |||||
| 17 | 5303290357 | Strainer |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| 19 | 5303002664 | Washer |
|
- | |||||
| F11 | 309634203 | Evaporator |
|
- | |||||
| F12 | 5303306719 | Condenser |
|
$ 574.61 | |||||
| F16 | 5304426870 | Capillary Tube,37.50 Inch Long |
|
- | |||||
| F17 | 5300265301 | Drain, Filter |
|
$ 284.30 |
