01 - Cover
03 - Cabinet Front And Wrapper

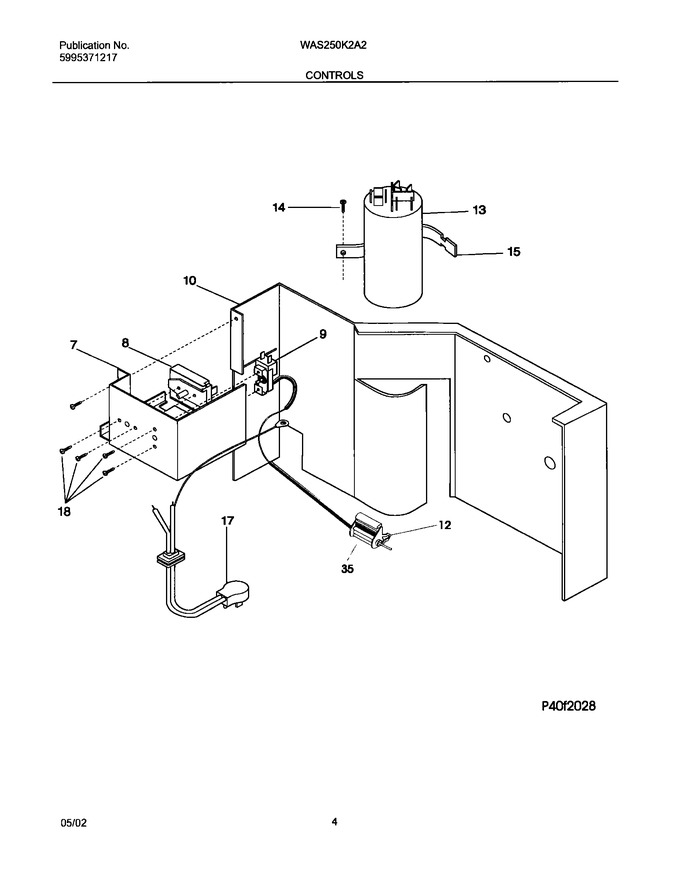

05 - Controls
07 - Air Handling Parts
09 - Compressor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5303015427 | Screw |
|
- | |||||
| 7 | 309630401 | No.box-control Hdta/tc |
|
- | |||||
| 10 | 309623602 | Bulkhead,control System |
|
- | |||||
| 10 | 309111201 | Grommet,wire Protector |
|
- | |||||
| 12 | 309331801 | No.retaining Clip-sens Bulb 1``cl |
|
- | |||||
| 14 | 5303285199 | Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 35 | 3200761 | Spacer |
|
- | |||||
| F13 | 5304426869 | Capacitor,450 V ,40+7.5 Mfd |
|
- | |||||
| F17 | 309343114 | Cord-electric Power,type-d ,12 Awg ,230 V |
|
- | |||||
| F8 | 5304410883 | Switch-selector,7 Position |
|
- | |||||
| F9 | 5304410884 | Cntrl-air Tmp 23amp Rating |
|
- |
