Diagram for 02 - Cabinet, Drum, Heat Duct

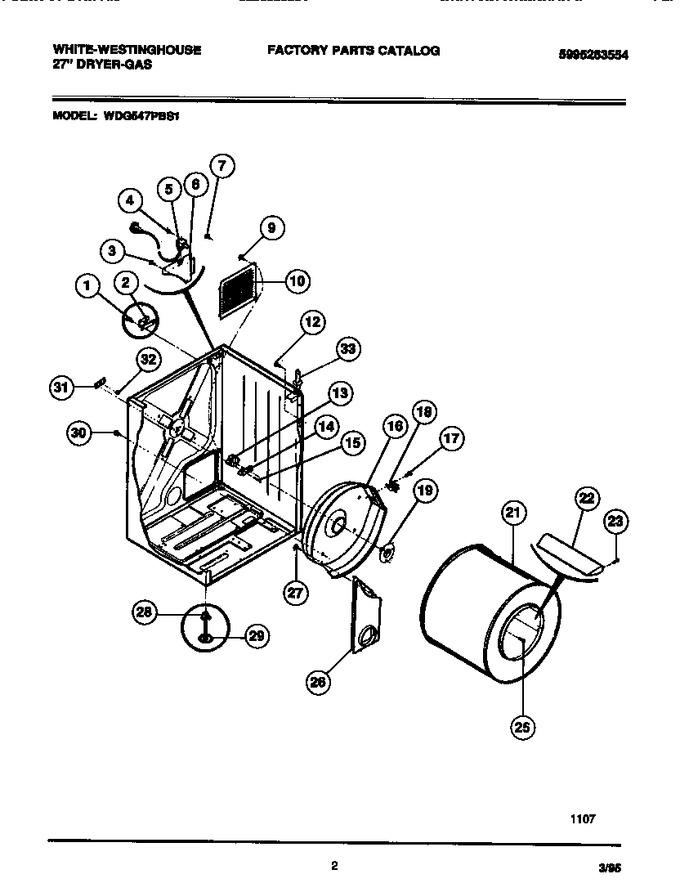

02 - Cabinet, Drum, Heat Duct

Diagram for 03 - Door, Front Panel, Lint Filter
03 - Door, Front Panel, Lint Filter

Diagram for 04 - Console, Controls, Top Panel
04 - Console, Controls, Top Panel

Diagram for 05 - Motor, Fan Housing, Exhaust Duct
05 - Motor, Fan Housing, Exhaust Duct

Diagram for 06 - Gas Valve, Burner Assembly, Sensor
06 - Gas Valve, Burner Assembly, Sensor


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 131168200 Screw (4) In-Stock Immediately $ 14.18

2 131332700 Hinge (2) Appelez-nous -
3 5303015671 Screw (2) Appelez-nous -
4 131205300 Screw In-Stock Immediately $ 12.10

5 5303281129 Service Cord Appelez-nous -
6 131363200 Cover-terminal Block Appelez-nous -
7 134154100 Screw   (Replaces: 131301100) Special Order $ 13.46

9 5303015671 Screw Appelez-nous -
10 5303281018 Cover Plate Appelez-nous -
12 131168200 Screw (4) In-Stock Immediately $ 14.18

13 131825900 Bearing (parts Contained In Rear Bearing Kit.)   (Replaces: 5303281008) In-Stock Immediately $ 10.97

14 131724301 Bracket-bearing (parts Contained In Rear Bearing Kit.)   (Replaces: 5303281023) In-Stock Immediately $ 25.66

15 5303281033 Screw--(parts Contained In Rear Bearing Kit.) Appelez-nous -
16 5303281119 Heater Housing & Seal Assembly Appelez-nous -
17 131243700 Screw (2) Special Order $ 3.36

18 5308015399 Thermostat - Safety Special Order $ 242.18

19 131777700 Shaft (parts Contained In Rear Bearing Kit)   (Replaces: 131378400) In-Stock Immediately $ 71.87

21 3201199 Drum Special Order $ 246.86

22 137552900 Vane   (Replaces: 5303201200) Special Order $ 54.95

23 131205200 Screw (6) Appelez-nous -
25 131378200 Screw (3) (parts Contained In Rear Bearing Kit.) Appelez-nous -
26 3281123 Duct-heat Appelez-nous -
27 5303281035 Screw Appelez-nous -
28 3201202 Grommet (4) Special Order $ 22.47

29 5303281032 Foot Bolt (4) Appelez-nous -
30 5303010202 Screw Special Order $ 5.15

31 5303281020 Nut-flat (parts Contained In Rear Bearing Kit.) Special Order $ 17.01

32 5303281019 Ball (parts Contained In Rear Bearing Kit.) Special Order $ 16.30

33 131346400 Pin, Locating Special Order $ 12.44

*41440 5303281039 Clip-cab.-front Bottom Special Order $ 8.09

*41441 5303281153 Rear Bearing Kit (parts Contained In Rear Bearing Kit.) In-Stock Immediately $ 46.64


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for WDG547PBS1
