Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303270858 Housing, Fan Appelez-nous -
2 5303281035 Screw Appelez-nous -
3 131383100 Thermostat-control Appelez-nous -
4 5303269972 Bracket, Grounding Appelez-nous -
8 5303015671 Screw Appelez-nous -
9 5303269973 Duct, Exhaust Appelez-nous -
10 131089400 Wheel, Blower Appelez-nous -
11 5303307784 Cover-fan Appelez-nous -
12 5303212834 Clamp, Motor Special Order $ 3.78

13 131198400 Motor & Pulley Appelez-nous -
15 131062205 Jumper Wire Appelez-nous -
16 131168200 Screw Ground In-Stock Immediately $ 14.18

17 131553800 Belt   (Replaces: 131130700) In-Stock Immediately $ 28.35

18 131382400 Idler Assembly Appelez-nous -
20 131017900 Screw Special Order $ 14.46

23 131367101 Cradle, Motor Appelez-nous -
24 5303281083 Spring Appelez-nous -
25 131205100 Screw (4) In-Stock Immediately $ 14.18

26 3281077 Screw Appelez-nous -
*41445 5303299316 Switch, Motor Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

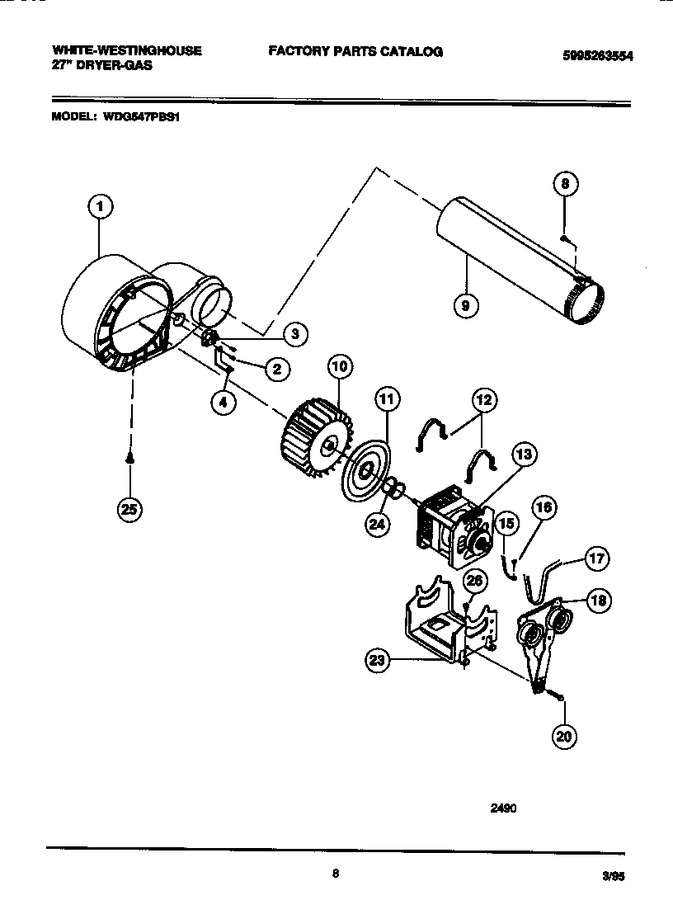

Diagram for WDG547PBS1
