Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
3 131205100 Screw (4) In-Stock Immediately $ 14.18

4 131111300 Timer Appelez-nous -
5 131048000 Switch, Start Appelez-nous -
6 131362500 Switch-temperature Special Order $ 147.30

7 131111501 Pushbutton Special Order $ 13.79

8 5303291351 End Cap-r.h. Appelez-nous -
9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

12 131118603 Knob-rotary Appelez-nous -
14 131169500 Buzzer Special Order $ 44.20

15 131297306 Bracket-controls Appelez-nous -
16 5303015671 Screw Appelez-nous -
17 5303291343 End Cap-l.h. Appelez-nous -
18 5303297854 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 131118903 Knob-timer Appelez-nous -
25 131369300 Panel-control Appelez-nous -
26 131370000 Harness Appelez-nous -
28 131130402 Panel, Top, White Appelez-nous -
32 131089800 Bracket, Control Board Special Order $ 50.83

33 131167400 Control Board Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

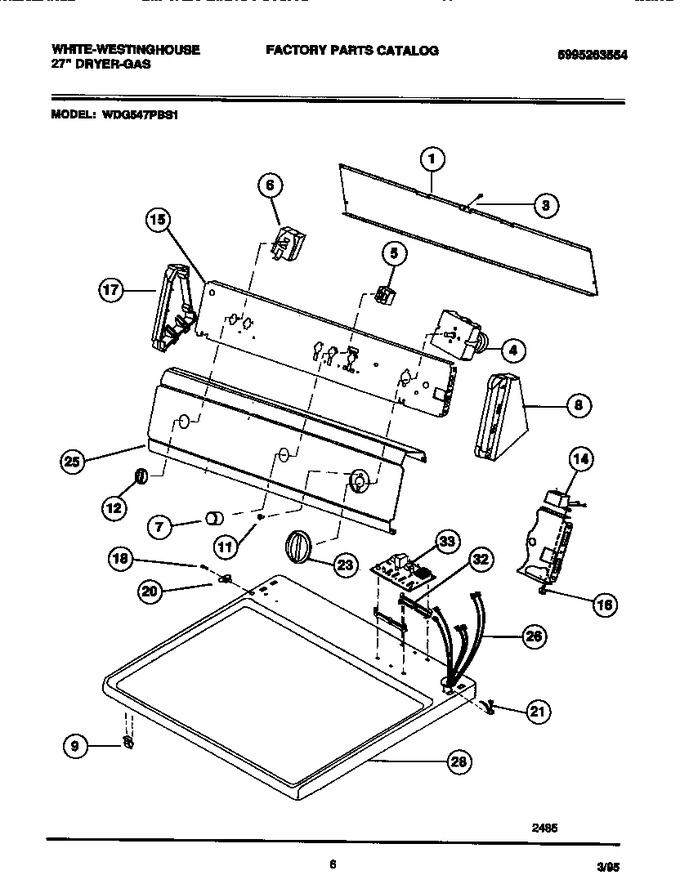

Diagram for WDG547PBS1
