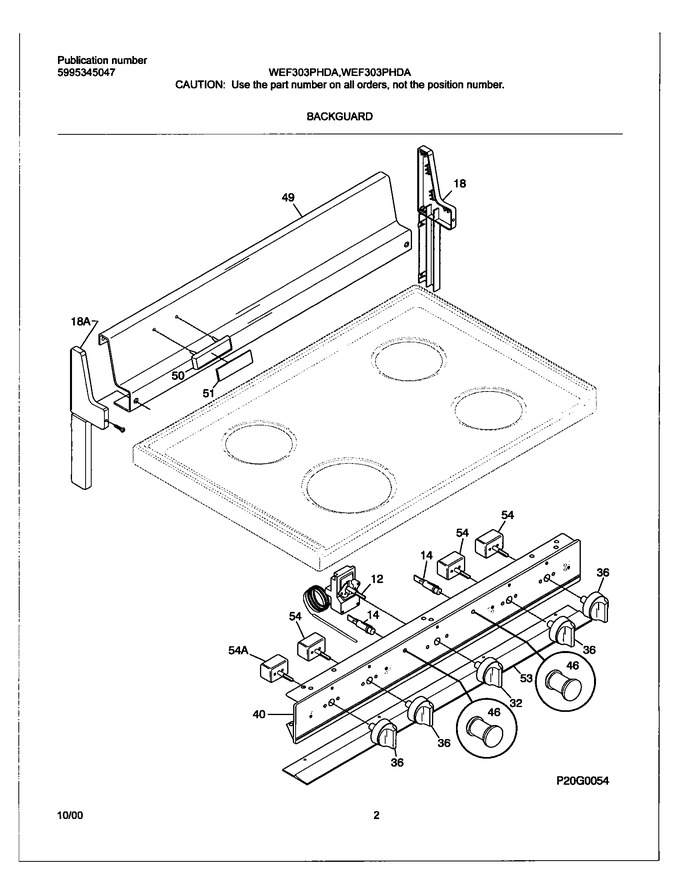

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022504		Light-indicator,250v		Appelez-nous	-
18	3202802		End Cap,black ,rh		Appelez-nous	-
32	316102302		Knob-thermostat,black		Appelez-nous	-
36	316102307		Knob-control,white		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
49	316073502		Panel-backguard, Almond		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095422		Insert-nameplate,wht Wstnghse		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
18A	3202801		End Cap,black ,lh		Appelez-nous	-
F12	316114600		Thermostat		Appelez-nous	-
F54	5303051540		Switch-6`` Element		Appelez-nous	-
F54A	5301313767		Switch-8`` Element		Appelez-nous	-
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
