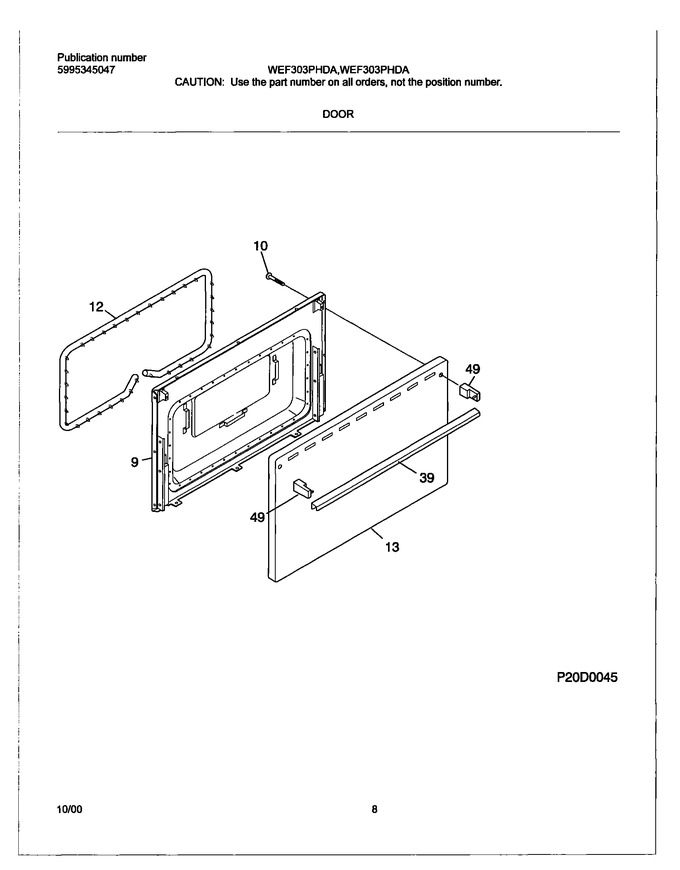

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3202316		Panel,oven Door ,almond		Appelez-nous	-
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316102200		Foil-aluminum		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 1/2 ,burner Box			Immediately	$ 13.46
