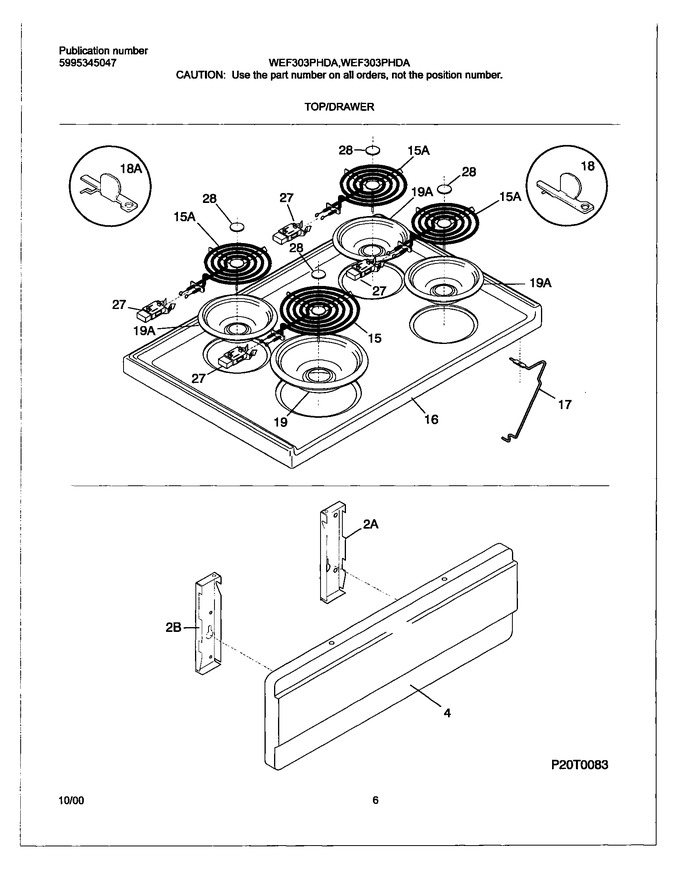

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	3051202		Panel-dummy, Almond		Appelez-nous	-
16	3051380		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F15	3051450		Element,surface ,8`` Large		Appelez-nous	-
F15A	3051449		Element-surface, Small		Appelez-nous	-
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
NI	5308014215		Screw				$ 2.28
NI	316105700		Bracket-drawer Panel, Rh		Appelez-nous	-
NI	316105701		Bracket-drawer Panel, Lh		Appelez-nous	-
NI	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
