Diagram for 01 - Blower Motor (convection)
01 - Blower Motor (convection)

Diagram for 02 - Blower Motor (cooling)
02 - Blower Motor (cooling)

Diagram for 03 - Body
03 - Body

Diagram for 04 - Drawer Assembly
04 - Drawer Assembly

Diagram for 05 - Internal Controls
05 - Internal Controls

Diagram for 06 - Oven Liner
06 - Oven Liner

Diagram for 07 - Top Assembly
07 - Top Assembly


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y702542 Bracket, Mounting Motor 11 Appelez-nous -
2 Y702549 Motor, Fan 11 Appelez-nous -
3 Y702525 Blade, Fan 11 Appelez-nous -
4 Y702345 Plate, Back 11 Appelez-nous -
5 WP90767 Screw   (Replaces: 715773) 11 In-Stock Immediately $ 7.04

6 M0282005 Nut, Hex   (Replaces: 701719) 11 Special Order $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

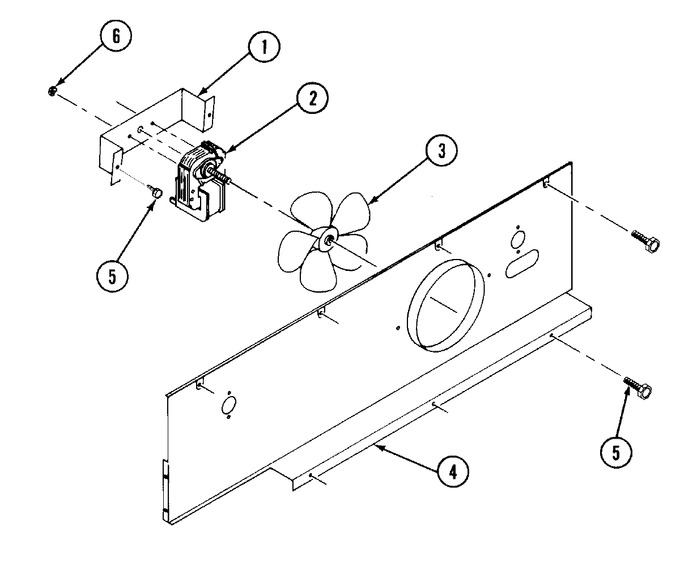

Diagram for SCE4320B
