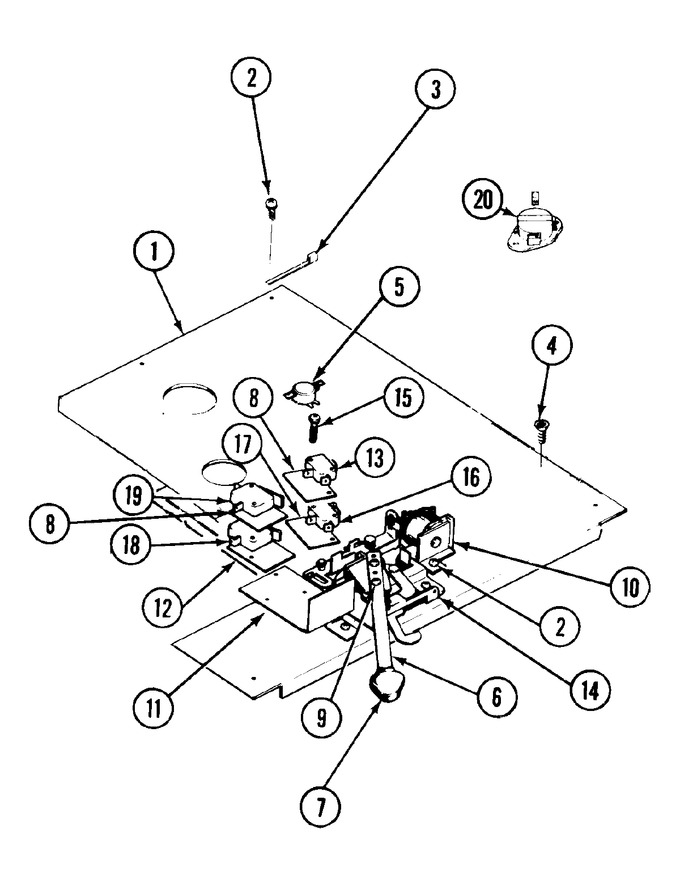

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Motor (convection)
02 - Blower Motor (cooling)
03 - Body
04 - Drawer Assembly
05 - Internal Controls
06 - Oven Liner
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704668 | Panel, Top | 11 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 3 | WPW10339879 | Tie, Cable (Replaces: 701678) | 11 |
|
$ 7.11 | ||||
| 4 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 5 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 11 |
|
Immediately | $ 181.29 | |||
| 6 | Y704227 | Lever, Latch (blk) | 11 |
|
- | ||||
| 7 | Y703932 | Knob (blk) | 11 |
|
- | ||||
| 7 | 701671 | Spring, Knob | 11 |
|
- | ||||
| 8 | 703264 | Insulator | 11 |
|
- | ||||
| 9 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 10 | Y702526 | Solenoid | 11 |
|
- | ||||
| 11 | 701706 | Shield, Switch | 11 |
|
- | ||||
| 12 | 702697 | Bracket,stiffener | 11 |
|
- | ||||
| 12 | Y701686 | Pin, Cotter | 11 |
|
- | ||||
| 13 | Y703732 | Switch, Latch | 11 |
|
- | ||||
| 14 | Y703357 | Latch Assy. | 11 |
|
- | ||||
| 15 | 702807 | Screw | 11 |
|
- | ||||
| 16 | Y702360 | Switch, Solenoid | 11 |
|
- | ||||
| 17 | 703750 | Wire, Grey | 11 |
|
- | ||||
| 17 | Y702350 | Insulator | 11 |
|
- | ||||
| 18 | Y704752 | Switch, Rear (bottom) | 11 |
|
- | ||||
| 19 | 702806 | Switch, Door | 11 |
|
- |
