01 - Blower Motor (convection)
02 - Blower Motor (cooling)

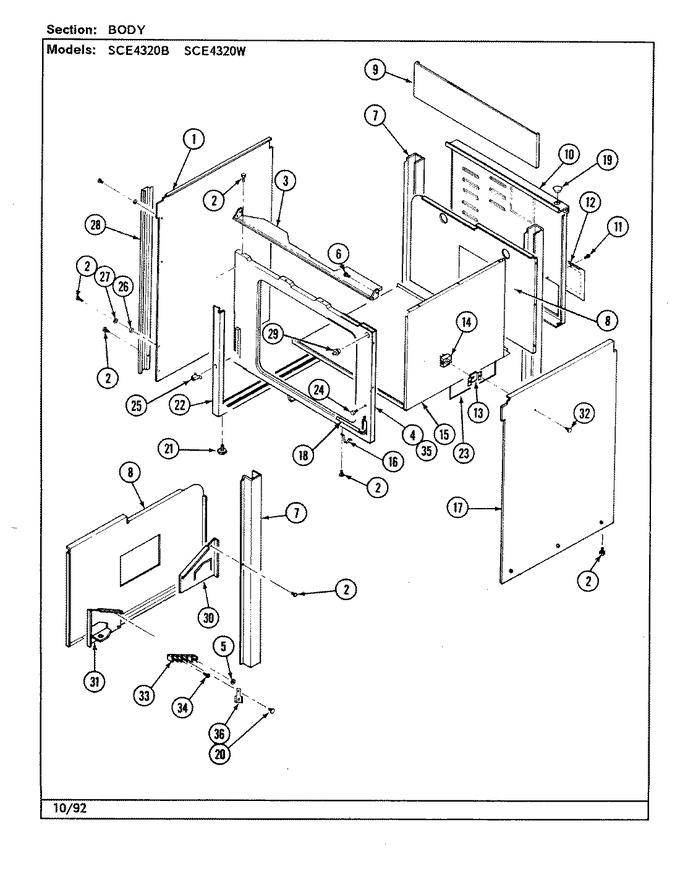

03 - Body
04 - Drawer Assembly
05 - Internal Controls
06 - Oven Liner
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702301 | Panel, Side (lt) | 11 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 3 | 712002 | Angle, Mount | 11 |
|
- | ||||
| 4 | 04100473 | Closure, Front | 11 |
|
- | ||||
| 5 | 707161 | Nut | 11 |
|
- | ||||
| 6 | 702731 | Screw | 11 |
|
- | ||||
| 7 | 704296 | Support,tube | 11 |
|
- | ||||
| 8 | Y704735 | Back, Inner | 11 |
|
- | ||||
| 9 | Y702345 | Plate, Back | 11 |
|
- | ||||
| 10 | 704294 | Cover, Rear | 11 |
|
- | ||||
| 11 | WPY706189 | Screw (Replaces: 700906) | 11 |
|
Immediately | $ 6.47 | |||
| 12 | 702333 | Cover, Access(r.h) | 11 |
|
- | ||||
| 13 | 704337 | Bracket | 11 |
|
- | ||||
| 14 | 704355 | Switch, Broil Cycle | 11 |
|
- | ||||
| 15 | 702336 | Angle, Oven Support | 11 |
|
- | ||||
| 15 | Y702319 | Panel, Bottom & Side (rt) | 11 |
|
- | ||||
| 16 | 702658 | Bracket, Hat | 11 |
|
- | ||||
| 17 | DE81-09758A | Panel, Side (rt) (Replaces: 702300) | 11 |
|
$ 1,127.72 | ||||
| 18 | Y703419 | Hinge | 11 |
|
- | ||||
| 19 | Y702696 | Strain, Relief | 11 |
|
- | ||||
| 20 | WP71001171 | Screw (Replaces: Y712004) | 11 |
|
$ 6.26 | ||||
| 21 | Y04100573 | Leveler, Leg | 11 |
|
$ 25.32 | ||||
| 22 | 712000 | Rail, Support Assembly | 11 |
|
- | ||||
| 23 | 704466 | Baffle, Inner | 11 |
|
- | ||||
| 24 | 715870 | Screw | 11 |
|
- | ||||
| 25 | 708763 | Clip----s | 11 |
|
- | ||||
| 26 | 00702462 | Washer, Conical (Replaces: 702462) | 11 |
|
$ 1,015.54 | ||||
| 27 | 712005 | Washer, Flat | 11 |
|
- | ||||
| 28 | 702337 | Trim, Side | 11 |
|
- | ||||
| 29 | 701666 | Switch, Door | 11 |
|
- | ||||
| 30 | 702557 | Gussett (lt) | 11 |
|
- | ||||
| 31 | 702556 | Gussett (rt) | 11 |
|
- | ||||
| 32 | 704335 | Screw | 11 |
|
- | ||||
| 33 | WP8203546 | Block, Terminal (Replaces: Y702284) | 11 |
|
Immediately | $ 27.12 | |||
| 34 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 34 | WP67006908 | Screw (Replaces: Y703002) | 11 |
|
Immediately | $ 7.16 | |||
| 35 | Y705344 | Bracket, Anti-tip | 11 |
|
$ 5.51 | ||||
| 35 | Y702335 | Strap, Ground | 11 |
|
- | ||||
| 36 | 04100481 | Air Deflector | 11 |
|
- |
