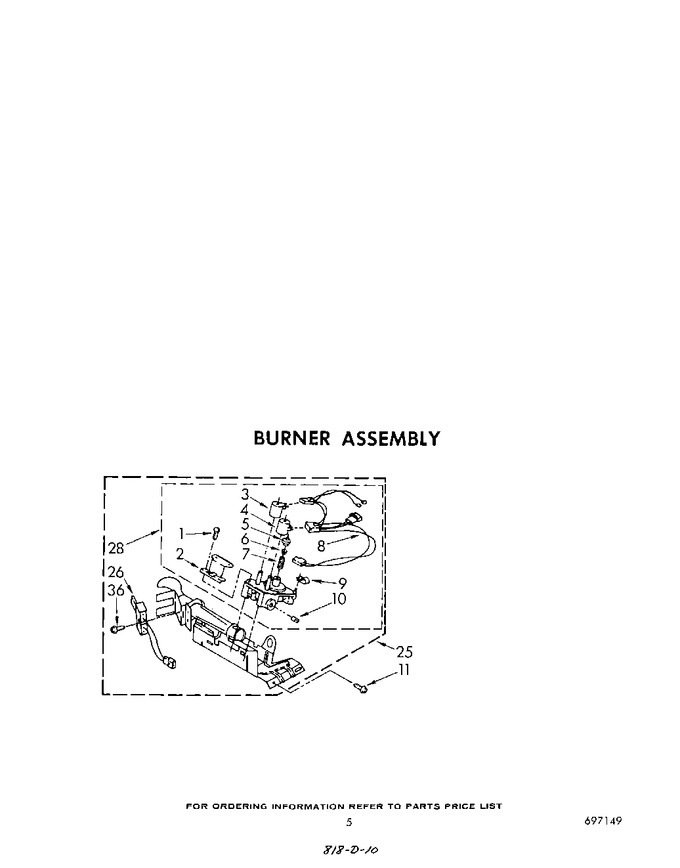

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 2 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 3 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 4 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 5 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 31.11 | |||||
| 6 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.26 | |||||
| 7 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 21.84 | |||||
| 8 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 218.68 | |||||
| 9 | 694510 | Clip, Harness |
|
- | |||||
| 10 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 11 | WP681414 | Screw, Burner Mounting (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 25 | 694671 | Burner Assembly (complete) |
|
- | |||||
| 26 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 26 | 279311 | Ignitor (alt.) (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 28 | 279923 | Valve, Gas (complete) (Replaces: 694054) |
|
Immediately | $ 257.43 | ||||
| 36 | WPW10366705 | Screw & Washer Ignitor Mounting (Replaces: 686953) |
|
$ 6.75 |
