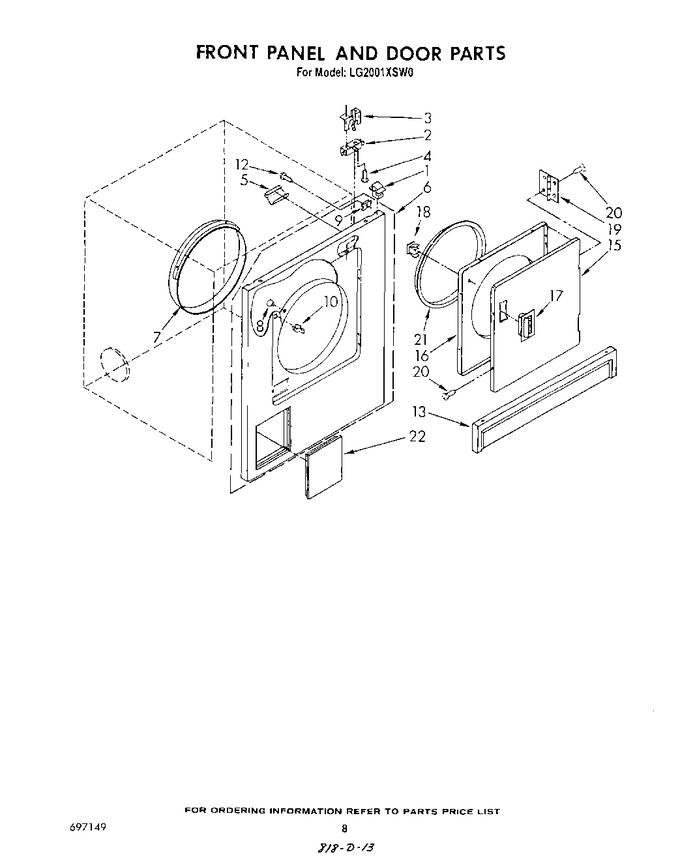

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP345670		Lock, Top (2)   (Replaces: 345670)			Immediately	$ 6.93
2	W10820036		Switch, Door   (Replaces: 344475)			Immediately	$ 27.45
3	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 7.28
4	WP98129		Screw, Door Switch Mounting (2)   (Replaces: 98129)				$ 6.80
5	686768		Support Protector		Appelez-nous	-
6	693053		Panel, Front (also Includes Illus. 7) (golden Wheat)		Appelez-nous	-
6	693050		Panel, Front (also Includes Illus. 7) (almond)		Appelez-nous	-
6	693049		Panel, Front (also Includes Illus. 7) (white)		Appelez-nous	-
6	695769		Panel, Front (also Includes Illus. 7) (platinum)		Appelez-nous	-
6	695768		Panel, Front (also Includes Illus. 7) (toast)		Appelez-nous	-
7	279264		Bearing & Seal   (Replaces: 349462)			Immediately	$ 67.07
8	279220		Clip, Felt Pad   (Replaces: 685203)				$ 18.59
9	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 10.25
10	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
12	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
13	692666		Panel, Toe (golden Wheat)		Appelez-nous	-
13	692663		Panel, Toe (almond)		Appelez-nous	-
13	695776		Panel, Toe (toast)		Appelez-nous	-
13	695777		Panel, Toe (platinum)		Appelez-nous	-
13	692662		Panel, Toe (white)		Appelez-nous	-
15	695215		Door, Front (platinum)		Appelez-nous	-
15	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 132.65
15	689319		Door, Front (golden Wheat)		Appelez-nous	-
15	695214		Door, Front (toast)		Appelez-nous	-
15	689314		Door, Front (almond)		Appelez-nous	-
16	280077		Door, Rear   (Replaces: 695656)				$ 177.82
17	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.16
17	689584		Handle, Door (golden Wheat)		Appelez-nous	-
17	689306		Handle, Door (almond)		Appelez-nous	-
17	695286		Handle, Door (platinum)		Appelez-nous	-
17	689285		Handle, Door (toast)		Appelez-nous	-
18	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.00
19	WP348023		Hinge & Pin, Door   (Replaces: 348023)				$ 7.58
20	WP694091		Screw, Hinge & Door Mounting (10)   (Replaces: 694091)				$ 6.47
21	W11613302		Seal, Door   (Replaces: 685763)				$ 48.27
22	695373		Door, Access (platinum)		Appelez-nous	-
22	693040		Door, Access (almond)		Appelez-nous	-
22	693043		Door, Access (golden Wheat)		Appelez-nous	-
22	693039		Door, Access (white)		Appelez-nous	-
22	695372		Door, Access (toast)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
