SELECT A DIAGRAM

02 - Top And Console


03 - Cabinet And Motor


04 - Burner

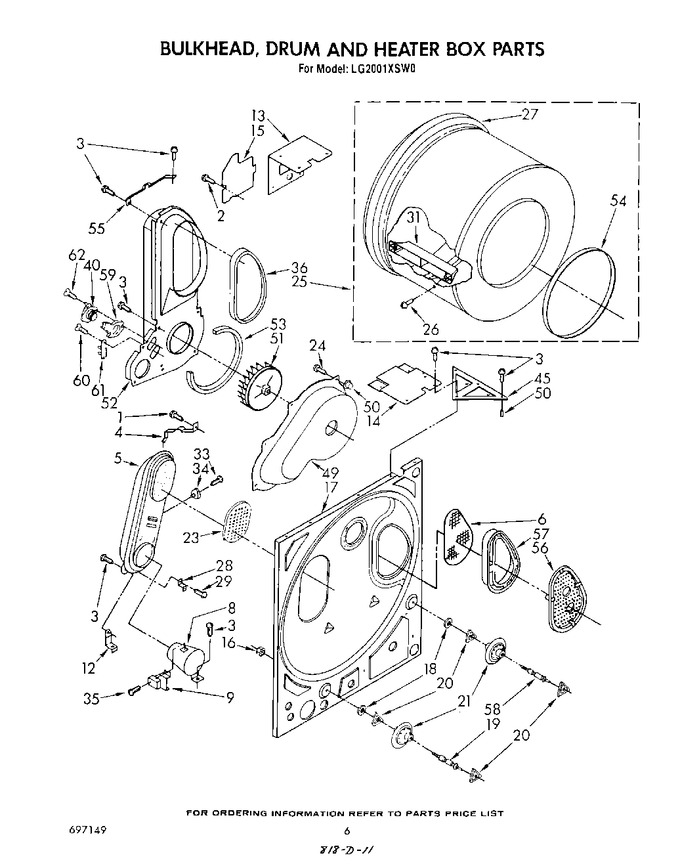

05 - Bulkhead, Drum And Heater Box , Lit


06 - Front Panel And Door


07 - 694671 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
2	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 6.47
3	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
4	279771		Clip, Heater Box To Bulkhead   (Replaces: 337272)				$ 12.90
5	346952		Box, Heater		Appelez-nous	-
6	348378		Screen, Back-up				$ 38.60
8	279900		Funnel, Burner   (Replaces: 347389)				$ 309.92
9	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
12	347455		Support, Heater Box		Appelez-nous	-
13	279304		Support, Terminal   (Replaces: 690259)		Appelez-nous	-
14	692697		Support, Terminal Block Extension		Appelez-nous	-
15	W11736322		Cover, Terminal Block   (Replaces: 690893)		Appelez-nous	-
16	120377		Nut, 3/8-16 (2)		Appelez-nous	-
17	695928		Bulkhead		Appelez-nous	-
18	WP348197		Washer, Support (4)   (Replaces: 348197)				$ 6.47
19	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 65.44
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 7.92
21	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 26.58
23	345335		Cover, Manifold				$ 94.50
24	WP308685		Screw, 10-16 X 1/2   (Replaces: 9416643)			Immediately	$ 7.08
25	3391834		Complete Drum Assembly   (Replaces: 695943)				$ 319.29
26	690372		Screw, 11-16 X 7/8		Appelez-nous	-
27	279735		Seal, Rear Drum   (Replaces: 345648)			Immediately	$ 60.04
28	347641		Spacer, Heater Box		Appelez-nous	-
29	WP33001882		Screw   (Replaces: 337686)				$ 71.75
31	00685207		Baffle, Drum (3)   (Replaces: 685207)				$ 293.40
33	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
34	660036		Thermostat, 205~f (96~c) (696707) (alt.) (341196) (alt.)		Appelez-nous	-
35	WP3390631		Screw, Sensor To Funnel   (Replaces: 339554)				$ 7.04
36	WP339956		Seal, Bulkhead To Air Duct   (Replaces: 339956)			Immediately	$ 7.77
40	WP694674		Thermostat, 140~f (60.0~c) (342812) (alt.)   (Replaces: 660040)			Immediately	$ 45.46
45	345325		Gusset, Cabinet To Bulkhead (2)		Appelez-nous	-
49	696419		Scroll, Fan				$ 123.14
50	W10491983		Cap, Screw   (Replaces: 359702)		Appelez-nous	-
51	WP696426		Wheel, Blower   (Replaces: 696426)			Immediately	$ 117.16
52	696539		Duct, Air		Appelez-nous	-
53	696658		Seal, Duct To Scroll		Appelez-nous	-
54	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 113.02
55	345396		Clip, Air Duct		Appelez-nous	-
56	W10828351		Cover, Lint Screen   (Replaces: 685273)			Immediately	$ 50.62
57	W10828351		Screen, Lint   (Replaces: 348399)			Immediately	$ 50.62
58	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 42.57
59	61894		Heater, Thermostat				$ 37.38
60	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.01
61	WP3392519		Thermal Fuse   (Replaces: 694511)			Immediately	$ 22.46
62	WP965173		Screw, 8-18 X 3/8 (2)   (Replaces: 695239)			Immediately	$ 9.65
	LIT693849		Guide, Dryer		Appelez-nous	-
	LIT787207		Dryer		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT697149		List, Repair Parts		Appelez-nous	-
	LIT3388161		Instructions, Installation		Appelez-nous	-
	LIT3387072		Use & Care Guide		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	LIT787206		Automatic Washer (belt Drive)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285368		Platinum		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Wheat (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285365		Toast		Appelez-nous	-
	261890		Golden Wheat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
