02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

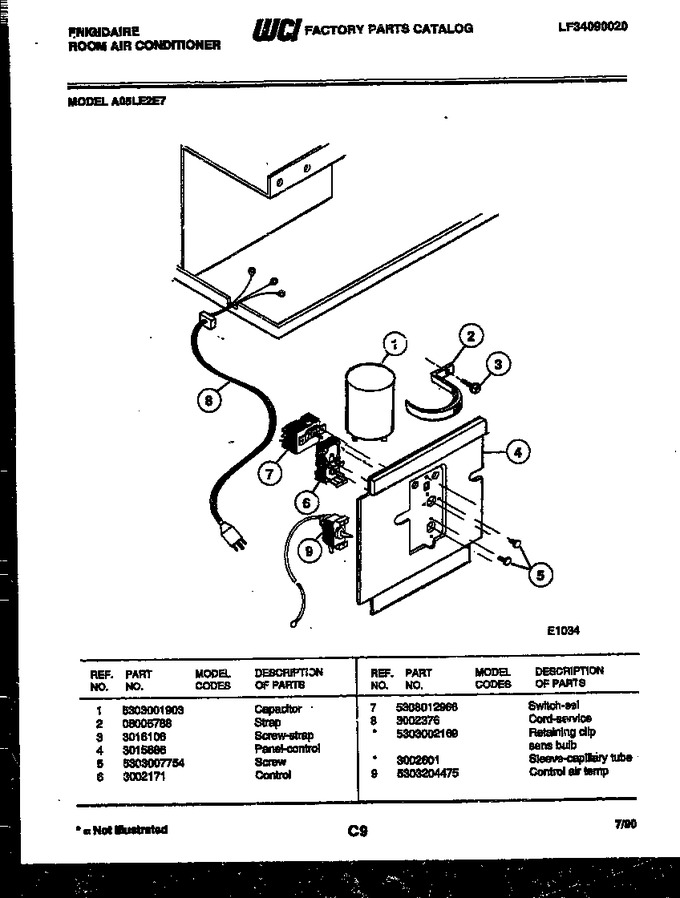

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001903 | Capacitor |
|
- | |||||
| 2 | 08006788 | Strap |
|
- | |||||
| 3 | 3016106 | Screw-strap |
|
- | |||||
| 4 | 3015686 | Panel-control |
|
- | |||||
| 5 | 5303007754 | Screw |
|
- | |||||
| 6 | 3002171 | Control |
|
- | |||||
| 7 | 5308012966 | Switch-sel |
|
- | |||||
| 8 | 3002376 | Cord-service |
|
- | |||||
| 9 | 5303204475 | Control Air Temp |
|
- | |||||
| 8A | 5303002169 | Retaining Clip Sens Bulb (non-illustrated) |
|
- | |||||
| 8B | 3002601 | Sleeve-capillary Tube (non-illustrated) |
|
- |
