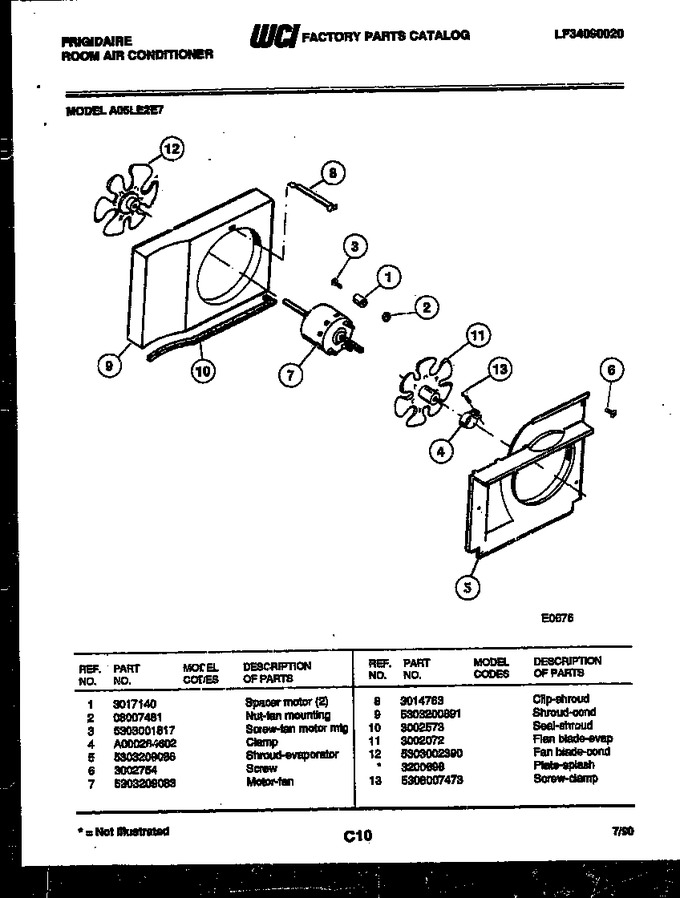

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017140 | Spacer Motor (2) |
|
- | |||||
| 2 | 08007481 | Nut |
|
$ 5.81 | |||||
| 3 | 5303001817 | Screw-fan Motor Mtg |
|
- | |||||
| 4 | A000264602 | Clamp |
|
- | |||||
| 5 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 6 | 3002754 | Screw |
|
- | |||||
| 7 | 5303209083 | Motor-fan |
|
- | |||||
| 8 | 3014763 | Clip-shroud |
|
- | |||||
| 9 | 5303200891 | Shroud-cond |
|
- | |||||
| 10 | 3002573 | Seal-shroud |
|
- | |||||
| 11 | 3002072 | Fan Blade-evap |
|
- | |||||
| 12 | 5303002390 | Fan Blade-cond |
|
- | |||||
| 13 | 5308007473 | Screw-clamp |
|
- | |||||
| 12A | 3200698 | Plate-splash (non-illustrated) |
|
- |
