02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

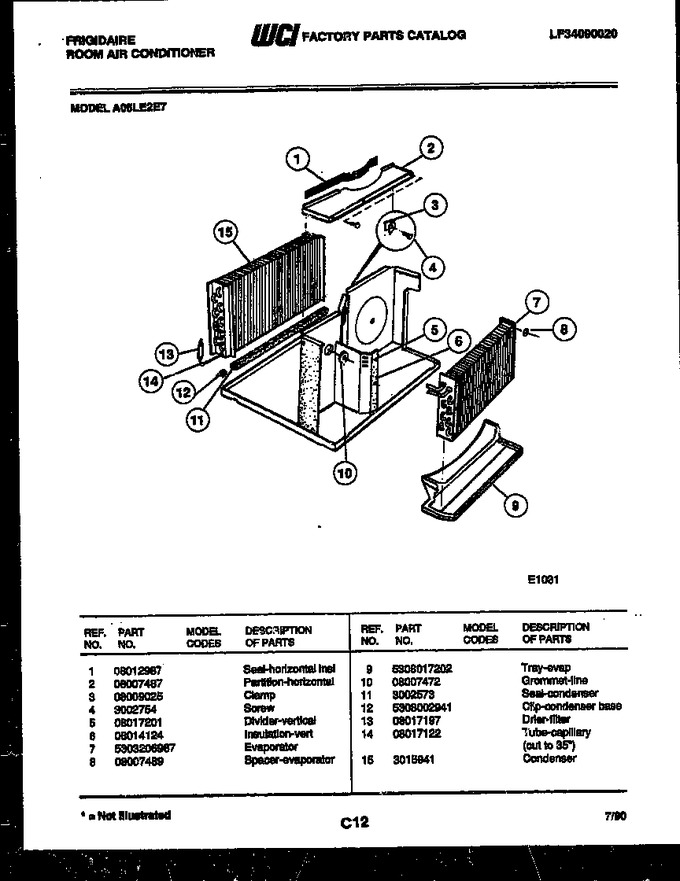

| 1 | 08012987 | Seal-horizontal Insl |
|
- | |||||
| 2 | 08007487 | Partition-horizontal |
|
- | |||||
| 3 | 08009025 | Clamp |
|
- | |||||
| 4 | 3002754 | Screw |
|
- | |||||
| 5 | 08017201 | Divider-vertical |
|
- | |||||
| 6 | 08014124 | Insulation-vert |
|
- | |||||
| 7 | 5303206967 | Evaporator |
|
- | |||||
| 8 | 08007489 | Spacer-evaporator |
|
- | |||||
| 9 | 5308017202 | Tray-evap |
|
- | |||||
| 10 | 08007472 | Grommet-line |
|
- | |||||
| 11 | 3002573 | Seal-condenser |
|
- | |||||
| 12 | 5308002941 | Clip-condenser Base |
|
- | |||||
| 13 | 08017197 | Drier-filter |
|
- | |||||
| 14 | 08017122 | Tube-capillary Cut To 35`` |
|
- | |||||
| 15 | 3015941 | Condenser |
|
- |
