02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

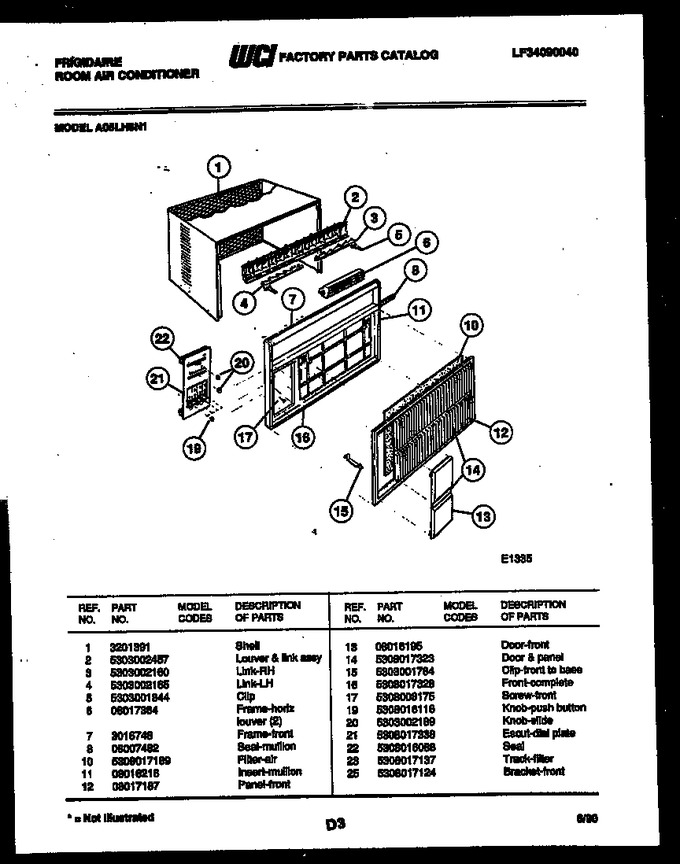

| 1 | 3201391 | Shell |
|
- | |||||
| 2 | 5303002457 | Louver & Link Assy |
|
- | |||||
| 3 | 5303002160 | Link-rh |
|
- | |||||
| 4 | 5303002165 | Link-lh |
|
- | |||||
| 5 | 5303001844 | Clip |
|
- | |||||
| 6 | 08017364 | Frame-horiz Louver (2) |
|
- | |||||
| 7 | 3016748 | Frame-front |
|
- | |||||
| 8 | 08007482 | Seal-mullion |
|
- | |||||
| 10 | 5308017189 | Filter-air |
|
- | |||||
| 11 | 08016216 | Insert-mullion |
|
- | |||||
| 12 | 08017187 | Panel-front |
|
- | |||||
| 13 | 08016195 | Door-front |
|
- | |||||
| 14 | 5308017323 | Door & Panel |
|
- | |||||
| 15 | 5303001784 | Clip-front To Base |
|
- | |||||
| 16 | 5308017328 | Front-complete |
|
- | |||||
| 17 | 5308008175 | Screw-front |
|
- | |||||
| 19 | 5308016116 | Knob-push Button |
|
- | |||||
| 20 | 5303002189 | Knob-slide |
|
- | |||||
| 21 | 5308017338 | Escut-dial Plate |
|
- | |||||
| 22 | 5308016088 | Seal |
|
- | |||||
| 23 | 5308017137 | Track-filter |
|
- | |||||
| 25 | 5308017124 | Bracket-front |
|
- |
