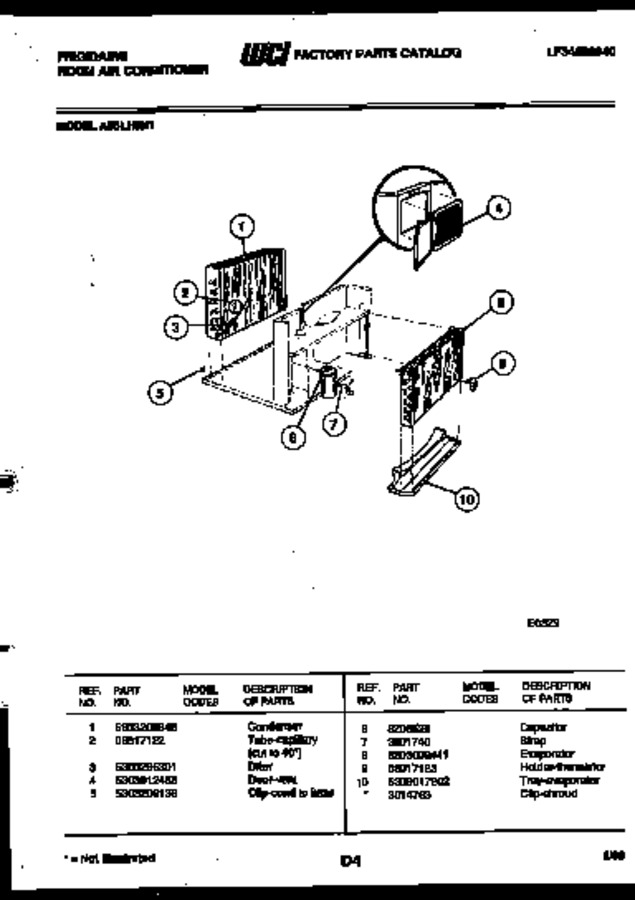

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209645 | Condenser |
|
- | |||||
| 2 | 08017122 | Tube-capillary (cut To 40``) |
|
- | |||||
| 3 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 4 | 5303012455 | Door Vent |
|
- | |||||
| 5 | 5303209136 | Clip-cond To Base |
|
- | |||||
| 6 | 3203526 | Capacitor |
|
- | |||||
| 7 | 3001740 | Strap |
|
- | |||||
| 8 | 5303002441 | Evaporator |
|
- | |||||
| 9 | 08017123 | Holder - Thermistor |
|
- | |||||
| 10 | 5308017202 | Tray-evaporator |
|
- | |||||
| *31718 | 3014763 | Clip-shroud |
|
- |
