02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

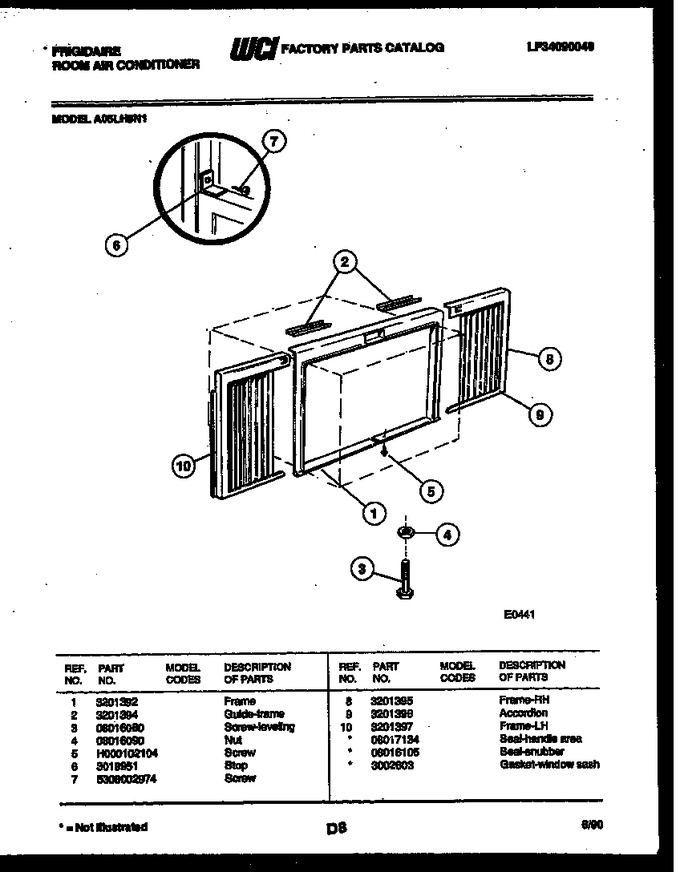

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201392 | Frame |
|
- | |||||
| 2 | 3201394 | Guide-frame |
|
- | |||||
| 3 | 08016080 | Screw-leveling |
|
- | |||||
| 4 | 08016090 | Nut |
|
- | |||||
| 5 | H000102104 | Screw |
|
- | |||||
| 6 | 3018951 | Stop |
|
- | |||||
| 7 | 5308002974 | Screw |
|
- | |||||
| 8 | 3201395 | Frame-rh |
|
- | |||||
| 9 | 3201396 | Accordion |
|
- | |||||
| 10 | 3201397 | Frame-lh |
|
- | |||||
| *31720 | 3002603 | Gasket-window Sash |
|
- | |||||
| *31720 | 08016105 | Seal-snubber |
|
- | |||||
| *31720 | 08017134 | Seal-handle Area |
|
- |
