02 - Cabinet Parts
03 - Electrical Parts
04 - Unit Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

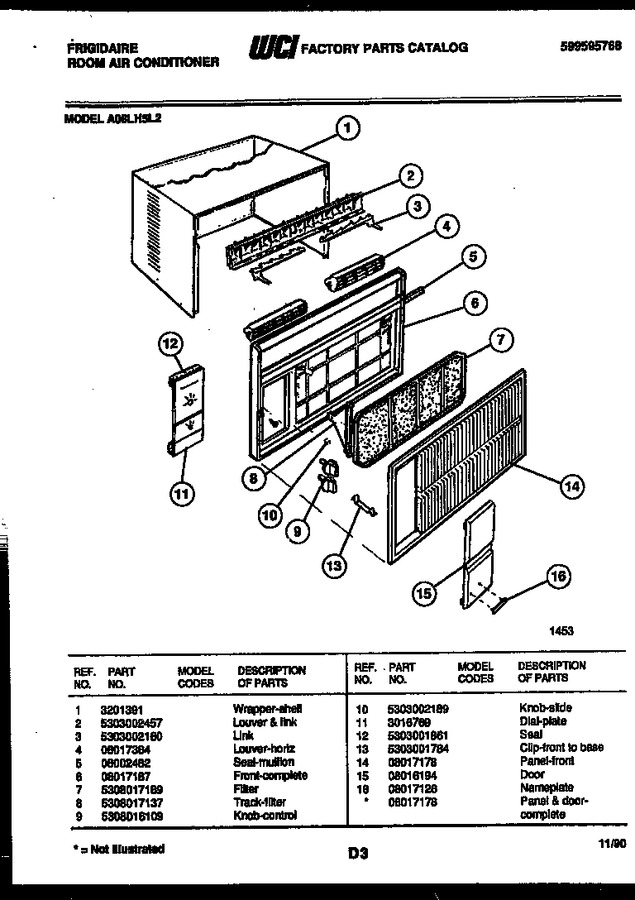

| 1 | 3201391 | Wrapper-shell |
|
- | |||||
| 2 | 5303002457 | Louver & Link |
|
- | |||||
| 3 | 5303002160 | Link |
|
- | |||||
| 4 | 08017364 | Louver-horiz |
|
- | |||||
| 5 | 08002482 | Seal-mullion |
|
- | |||||
| 6 | 08017187 | Front-complete |
|
- | |||||
| 7 | 5308017189 | Filter |
|
- | |||||
| 8 | 5308017137 | Track-filter |
|
- | |||||
| 9 | 5308016109 | Knob-control |
|
- | |||||
| 10 | 5303002189 | Knob-slide |
|
- | |||||
| 11 | 3016769 | Dial-plate |
|
- | |||||
| 12 | 5303001861 | Seal |
|
- | |||||
| 13 | 5303001784 | Clip-front To Base |
|
- | |||||
| 14 | 08017178 | Panel-front |
|
- | |||||
| 15 | 08016194 | Door |
|
- | |||||
| 16 | 08017126 | Name Plate |
|
- | |||||
| *38571 | 08017178 | Panel & Door-complete |
|
- |
