02 - Cabinet Parts
03 - Electrical Parts
04 - Unit Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

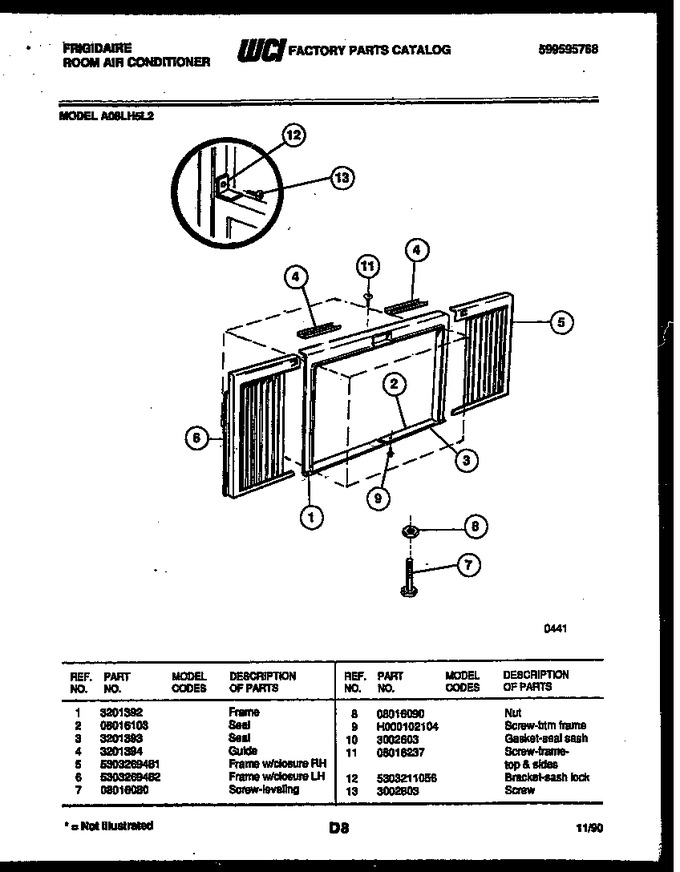

| 1 | 3201392 | Frame |
|
- | |||||
| 2 | 08016103 | Seal |
|
- | |||||
| 3 | 3201393 | Seal |
|
- | |||||
| 4 | 3201394 | Guide |
|
- | |||||
| 5 | 5303269481 | Frame W/ Closure Rh |
|
- | |||||
| 6 | 5303269482 | Frame W/ Closure Lh |
|
- | |||||
| 7 | 08016080 | Screw-leveling |
|
- | |||||
| 8 | 08016090 | Nut |
|
- | |||||
| 9 | H000102104 | Screw-btm Frame |
|
- | |||||
| 10 | 3002603 | Gasket, Seal Sash |
|
- | |||||
| 11 | 08016237 | Screw |
|
- | |||||
| 12 | 5303211056 | Bracket-sash Lock |
|
- | |||||
| 13 | 3002803 | Screw |
|
- |
