02 - Cabinet Parts

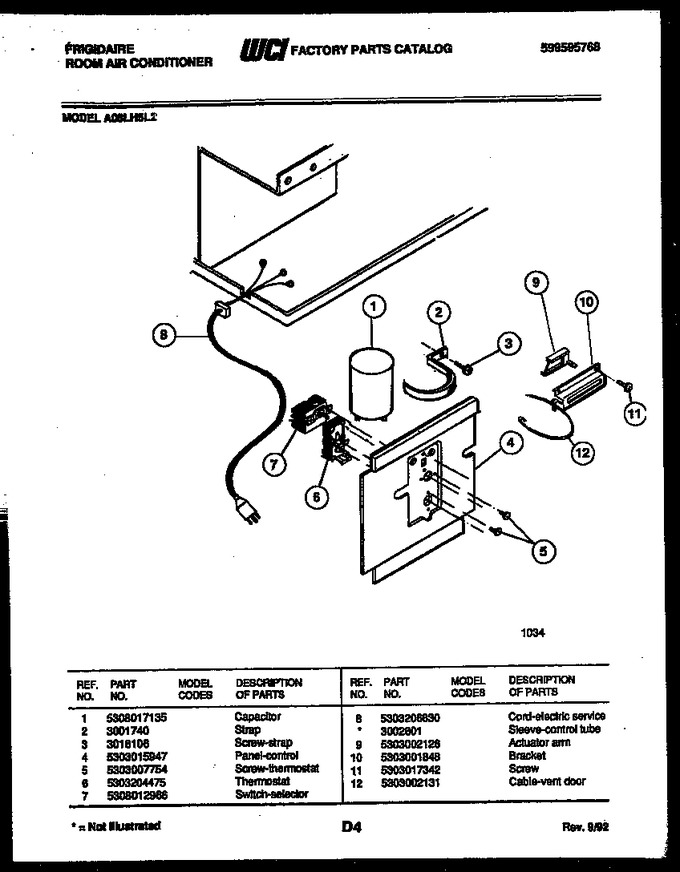

03 - Electrical Parts
04 - Unit Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017135 | Capacitor |
|
- | |||||
| 2 | 3001740 | Strap |
|
- | |||||
| 3 | 3016106 | Screw-strap |
|
- | |||||
| 4 | 5303015947 | Panel-control |
|
- | |||||
| 5 | 5303007754 | Screw-thermostat |
|
- | |||||
| 6 | 5303204475 | Thermostat |
|
- | |||||
| 7 | 5308012966 | Switch-selector |
|
- | |||||
| 8 | 5303206830 | Cord-electric Service |
|
- | |||||
| 9 | 5303002126 | Actuator Arm |
|
- | |||||
| 10 | 5303001848 | Bracket |
|
- | |||||
| 11 | 5303017342 | Screw |
|
- | |||||
| 12 | 5303002131 | Cable-vent Door |
|
- | |||||
| 8A | 3002601 | Sleeve-control Tube (non-illustrated) |
|
- |
