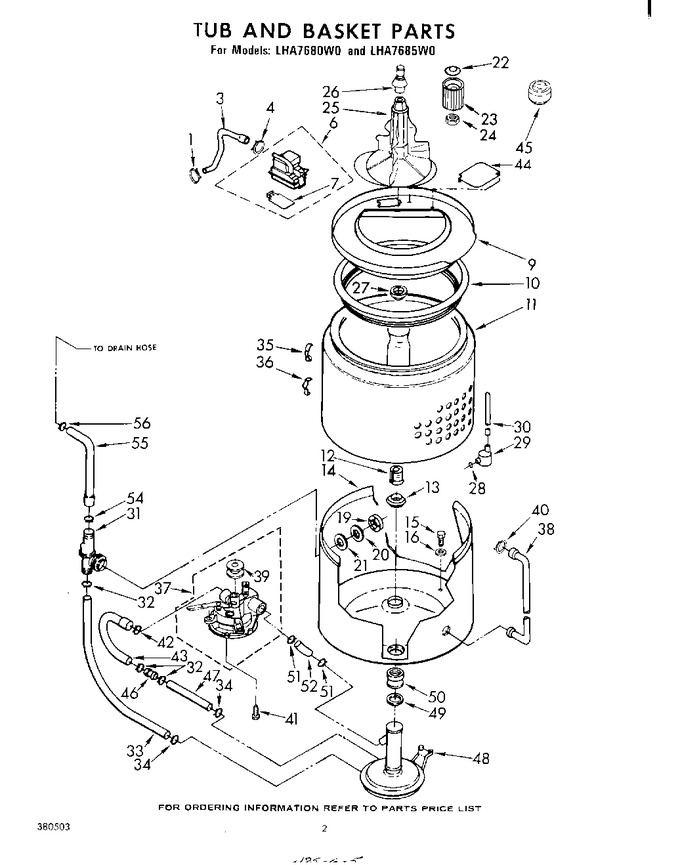

02 - Tub And Basket


03 - Drive , Lit/optional


04 - Top And Console


05 - Cabinet


06 - Water System , Pump


07 - Gearcase


08 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
9	356038		Ring, Tub		Appelez-nous	-
10	356584		Seal, Tub Ring		Appelez-nous	-
11	357968		Basket		Appelez-nous	-
12	WP389140		Block, Drive   (Replaces: 357782)			Immediately	$ 24.74
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	361983		Tub		Appelez-nous	-
15	WP358237		Screw, Tub   (Replaces: 356973)			Immediately	$ 7.97
16	WP21365		Washer, Rubber   (Replaces: 21365)				$ 10.14
19	DE81-06164A		Nut, Spanner   (Replaces: 92229)				$ 125.78
20	DE81-03541A		Washer, Fiber   (Replaces: 92232)				$ 107.38
21	DE81-04739A		Washer, Rubber   (Replaces: 92235)				$ 74.11
22	358773		Insert, Agitator Cap		Appelez-nous	-
23	356863		Cap, Agitator		Appelez-nous	-
24	357732		Nut, Lock		Appelez-nous	-
25	358370		Agitator Assembly		Appelez-nous	-
26	369516		Stud & Washer Assembly		Appelez-nous	-
27	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 353406)			Immediately	$ 53.94
31	88677		Valve, Side Check		Appelez-nous	-
32	272857		Clamp, Hose		Appelez-nous	-
33	355151		Hose, Side Check To Filter (non-suds & Suds)		Appelez-nous	-
34	WP285655		Clamp, Hose   (Replaces: 371500)			Immediately	$ 7.55
35	356701		Clip, Tub Ring (3)		Appelez-nous	-
36	356700		Clip, Tub Ring (1)		Appelez-nous	-
37	350365		Pump, Complete (for Further Breakdown Refer To Page 9)   (Replaces: 358036)			Immediately	$ 116.12
38	352978		Hose, Dispenser		Appelez-nous	-
39	16113		Pulley, Pump		Appelez-nous	-
40	WP596669		Clamp, Hose   (Replaces: 287859)			Immediately	$ 7.56
41	386011		Screw   (Replaces: 96867)		Appelez-nous	-
42	WP616099		Clamp, Hose   (Replaces: 272859)			Immediately	$ 7.03
43	355152		Hose, Pump To Filter		Appelez-nous	-
44	355852		Plate, Snubber		Appelez-nous	-
45	88932		Dispenser, Rinse		Appelez-nous	-
46	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
47	356167		Hose, Pump To Filter		Appelez-nous	-
48	371743		Manifold & Filter		Appelez-nous	-
49	9421321		Clamp, Hose		Appelez-nous	-
50	96386		Hose, Tub Outlet		Appelez-nous	-
51	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
52	96251		Hose, Pump To Manifold				$ 48.51
54	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 7.67
55	96816		Hose, Side Check To Drain (non-suds & Suds)		Appelez-nous	-
56	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
