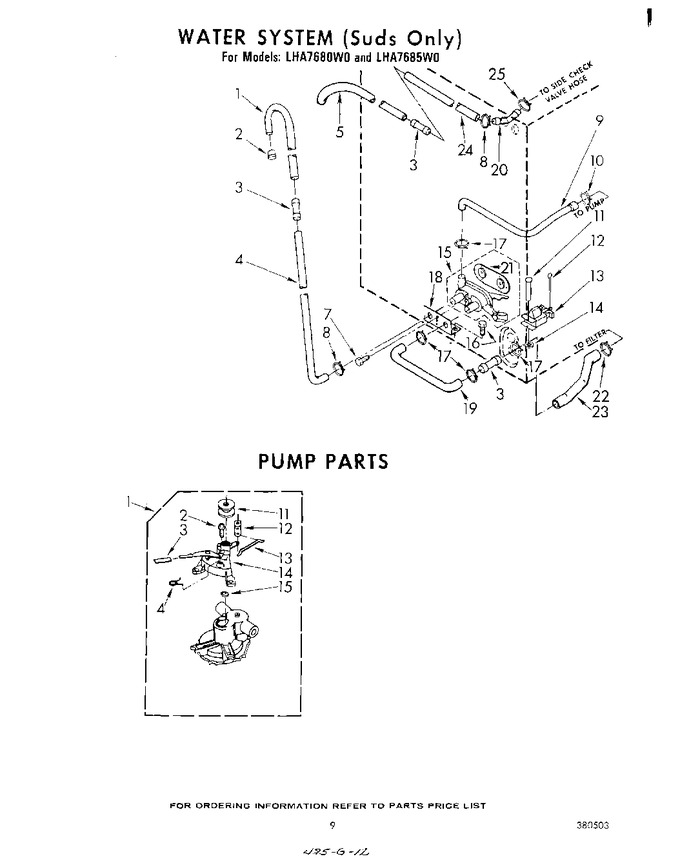

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	91273		Hose, Suds Discharge		Appelez-nous	-
1	350365		Pump Assembly   (Replaces: 358036)			Immediately	$ 116.12
2	WP273556		Screw, 10-12 X 5/8   (Replaces: 273556)			Immediately	$ 7.04
2	352833		Strainer, Hose		Appelez-nous	-
3	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
3	96175		Sleeve		Appelez-nous	-
4	96266		Spring, Toggle		Appelez-nous	-
4	96746		Hose, Outlet				$ 71.22
5	96865		Hose, Drain		Appelez-nous	-
7	190575		Screw & Washer		Appelez-nous	-
8	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
9	97786		Hose, Pump To Two-way Valve				$ 6.30
10	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
11	356990		Rivet		Appelez-nous	-
11	16113		Pulley		Appelez-nous	-
12	355538		Lever, Valve		Appelez-nous	-
12	90228		Pin, Cotter (1/8 X 3/4)		Appelez-nous	-
13	96264		Rod, Connecting		Appelez-nous	-
13	DE81-09913A		Solenoid, Two-way Valve   (Replaces: 86798)				$ 33.80
14	87290		Bearing Block Assembly		Appelez-nous	-
14	WP90296		Clip, Push-on   (Replaces: 90296)				$ 7.07
15	99830		Valve, Two-way		Appelez-nous	-
15	96265		Wick, Oil		Appelez-nous	-
16	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
17	WP285655		Clamp, Hose   (Replaces: 370446)			Immediately	$ 7.55
18	357191		Bracket		Appelez-nous	-
19	97784		Hose, Two-way Valve To Connector		Appelez-nous	-
20	95440		Connector, Hose				$ 22.55
21	75183		Diaphragm		Appelez-nous	-
22	WP285655		Clamp, Hose   (Replaces: 371500)			Immediately	$ 7.55
23	355530		Hose, Filter To Cabinet		Appelez-nous	-
24	96744		Hose, Outlet		Appelez-nous	-
25	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
