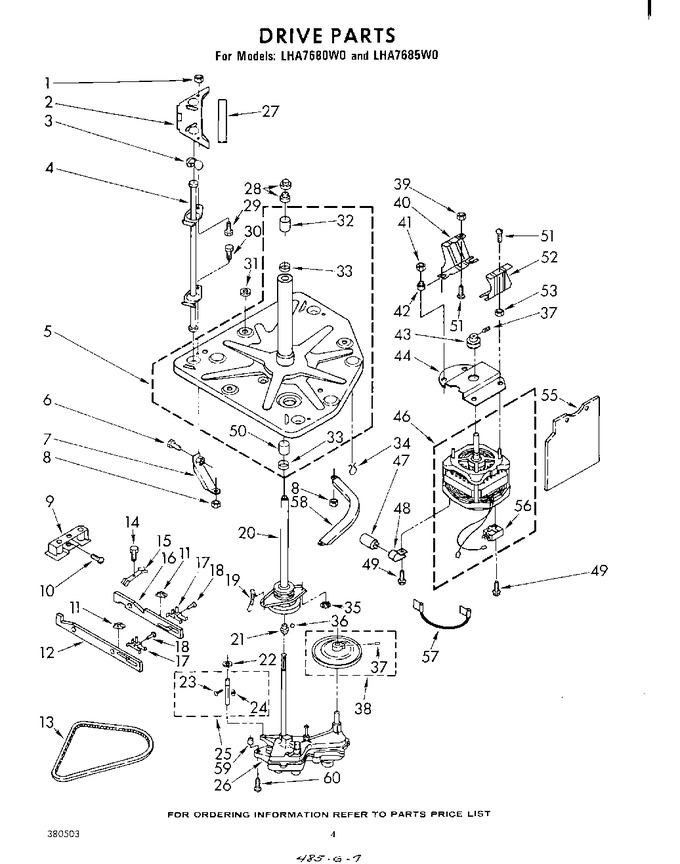

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 90984 Nut, 5/16-18 Appelez-nous -
2 352143 Cover, Gusset (l.r. & R.r.) Appelez-nous -
2 353230 Cover, Gusset (l.f.) Appelez-nous -
3 91073 Ball, Suspension (6) Appelez-nous -
4 87270 Rod, Suspension (3) Appelez-nous -
5 358948 Baseplate & Centerpost Appelez-nous -
6 WP3400516 Screw   (Replaces: 98062) In-Stock Immediately $ 6.47

7 353301 Brace, Baseplate Appelez-nous -
8 96101 Nut, 5/16-24 Appelez-nous -
9 365998 Magnet Appelez-nous -
10 16135 Screw, Taper End Appelez-nous -
11 95462 Guide, Cam Bar Appelez-nous -
12 350532 Cam, Bar Spin   (Replaces: 354838) Appelez-nous -
13 WP95405 Belt, ``v``   (Replaces: 95405) Special Order $ 46.08

14 98001 Screw, 1/4-28 X 1/2 Appelez-nous -
15 94726 Spring, Brake Appelez-nous -
16 18642 Cam, Agitator & Pump Special Order $ 24.51

17 84866 Plunger Appelez-nous -
18 354959 Rivet Appelez-nous -
19 17261 Spring, Brake Yoke Appelez-nous -
20 357970 Basket Drive & Brake (for Further Breakdown Refer To Page 11) Appelez-nous -
21 358586 Support, Spin Tube Appelez-nous -
22 90315 Washer Appelez-nous -
23 90532 Pin, Roll Appelez-nous -
24 92119 Roller, Basket Clutch Shaft Appelez-nous -
25 359460 Shaft, Basket Clutch Appelez-nous -
26 362901 Gearcase (for Further Breakdown Refer To Page 10) Appelez-nous -
27 352434 Pad, Gusset Cover (6) Appelez-nous -
28 WP8577376 Seal, Centerpost (2)   (Replaces: 356934) In-Stock Immediately $ 6.47

29 126358 Bolt, 5/16 X 1 (3) Appelez-nous -
29 126211 Bolt, 5/16 X 5/8 (2) Appelez-nous -
29 353770 Bolt, Snubber (1) Appelez-nous -
30 98048 Bolt, 5/16-24 Appelez-nous -
31 17235 Gasket, Tub (7) Special Order $ 249.30

32 WP8546455 Bearing, Upper (1)   (Replaces: 54207) In-Stock Immediately $ 25.16

33 W11095997 Seal, Agitator Shaft (2)   (Replaces: 357409) In-Stock Immediately $ 20.07

34 16515 Clip, Harness Special Order $ 17.60

35 356444 Retainer, Brake Yoke Special Order $ 5.33

36 358585 Ball Appelez-nous -
37 355345 Setscrew, 5/16-18 X 1/2 Special Order $ 5.04

38 360840 Pulley, Main Drive Special Order $ 35.96

39 96016 Locknut, 3/8-16 Appelez-nous -
40 85286 Bracket, Motor Mounting Appelez-nous -
41 98023 Nut (4) Appelez-nous -
42 19138 Grommet, Motor Bracket (4) Appelez-nous -
43 357514 Pulley, Motor Appelez-nous -
44 356217 Shield, Motor (upper) Appelez-nous -
46 357822 Motor (emerson) (alternate) 60 Hz. Appelez-nous -
46 370653 Motor (general Electric) (alternate) 60 Hz. Appelez-nous -
47 WP8572717 Capacitor, Motor Start   (Replaces: 357021) In-Stock Immediately $ 72.13

48 357030 Clamp, Capacitor Special Order $ 18.98

49 WP3390631 Screw, Motor Grounding   (Replaces: 9420601) Special Order $ 7.04

50 354195 Bearing, Lower Appelez-nous -
51 98537 Bolt, 3/8-16 X 3/4 Appelez-nous -
52 93549 Bracket, Motor Mounting Appelez-nous -
53 95721 Nut, 3/8-16 Appelez-nous -
55 357395 Shield, Motor Appelez-nous -
56 362086 Switch, Motor Start (use W/general Electric Motor) Appelez-nous -
56 362738 Switch, Motor Start (use W/emerson Motor) Appelez-nous -
57 370950 Wire, Jumper Appelez-nous -
58 351500 Brace, Manifold (1) Appelez-nous -
58 351499 Brace, Motor (1) Appelez-nous -
59 16062 Spacer, Stud & Gearcase Appelez-nous -
60 799351 Thinner (1 Gal.) Appelez-nous -
60 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

60 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.12

60 90877 Screw & Washer Appelez-nous -
60 359325 Harness, Console (non-suds) Appelez-nous -
60 359326 Harness, Console (suds) Appelez-nous -
60 358116 Harness, Base (non-suds) Appelez-nous -
60 88916 Harness, Cabinet (suds) Appelez-nous -
60 369756 Bag, Miscellaneous Parts (non-suds) Appelez-nous -
60 369743 Bag, Miscellaneous Parts (suds) Appelez-nous -
60 380472 Instructions, Operating Appelez-nous -
60 372832 Instructions, Installation Appelez-nous -
60 358770 Guide, Laundry Appelez-nous -
60 380503 List, Parts Appelez-nous -
60 DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 98.33

60 DD81-03471A Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109) Special Order $ 54.25

60 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 124.07

60 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

60 261886 Coffee Appelez-nous -
60 261888 New Avocado Appelez-nous -
60 261890 Golden Harvest Appelez-nous -
60 350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
60 350941 Leveler (thinner) Appelez-nous -
60 350956 Paint, Spray 13 Oz. (almond) Special Order $ 46.30

261891 Xgolden Harvest (uncut) Appelez-nous -
010875 Wire, Splicing, 120 Volt Appelez-nous -
299885 Wire, Splicing 240 Volt Appelez-nous -
978883 Almond (uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

261887 Xcoffee (uncut) Appelez-nous -
261889 Xnew Avocado (uncut) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
