Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y702542 Bracket, Mounting Motor 1 Appelez-nous -
2 Y702549 Motor, Fan 1 Appelez-nous -
3 Y702525 Blade, Fan 1 Appelez-nous -
4 Y702345 Plate, Back 1 Appelez-nous -
5 WP90767 Screw   (Replaces: 715773) 1 In-Stock Immediately $ 7.04

6 M0282005 Nut, Hex   (Replaces: 701719) 1 Special Order $ 7.07

7 Y704923 Relay 1 Appelez-nous -
8 703534 Screw 1 Appelez-nous -
9 704940 Clip, Cable 1 Appelez-nous -
10 WPW10253196 Screw   (Replaces: Y707113) 1 Special Order $ 3.76


    View Diagram in Separate Window     Print Icon   Print Part List

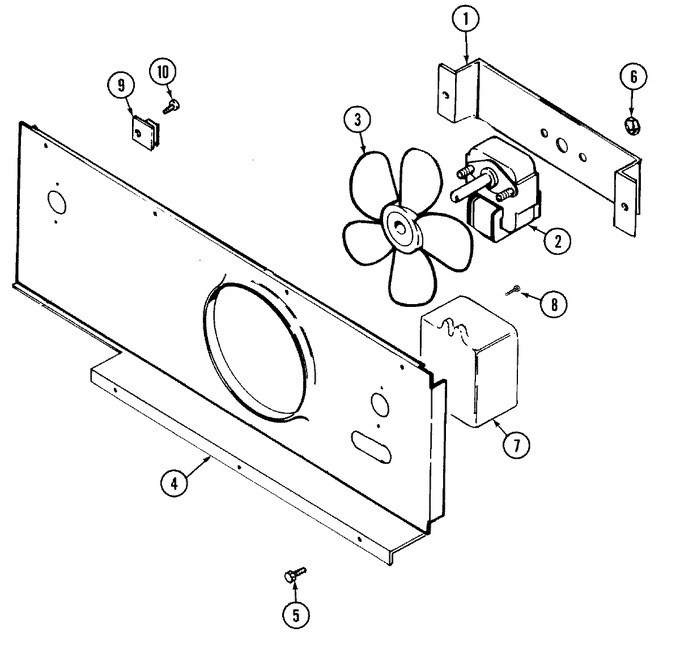

Diagram for SEG196W
