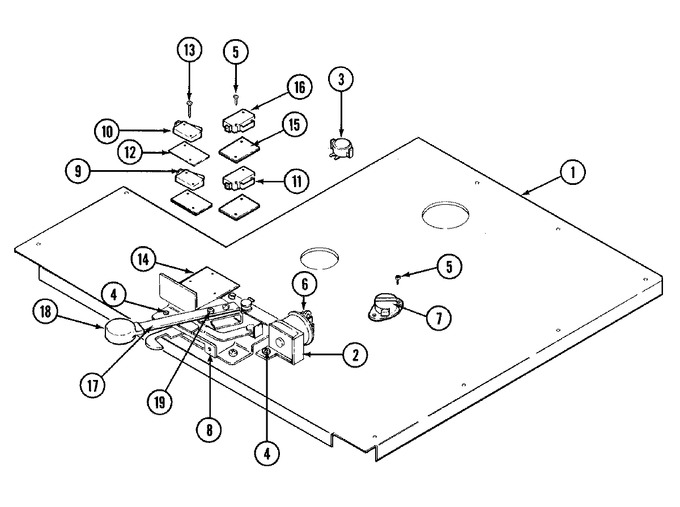

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704669 | Panel, Top | 1 |
|
- | ||||
| 2 | Y702526 | Solenoid | 1 |
|
- | ||||
| 3 | WP7403P899-60 | Switch, Hi-limit (Replaces: Y702548) | 1 |
|
Immediately | $ 181.29 | |||
| 4 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 6 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 6 | 702697 | Bracket,stiffener | 1 |
|
- | ||||
| 8 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 9 | Y704752 | Switch, Rear (bottom) | 1 |
|
- | ||||
| 10 | 702806 | Switch, Door | 1 |
|
- | ||||
| 11 | Y702360 | Switch, Solenoid | 1 |
|
- | ||||
| 12 | Y702350 | Insulator | 1 |
|
- | ||||
| 13 | 702807 | Screw | 1 |
|
- | ||||
| 14 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 15 | 703264 | Insulator | 1 |
|
- | ||||
| 16 | Y703732 | Switch, Latch | 1 |
|
- | ||||
| 17 | Y703848 | Lever, Latch (wht) | 1 |
|
- | ||||
| 18 | 704460 | Knob (wht) | 1 |
|
- | ||||
| 18 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 19 | 707407 | Screw | 1 |
|
$ 6.42 |
